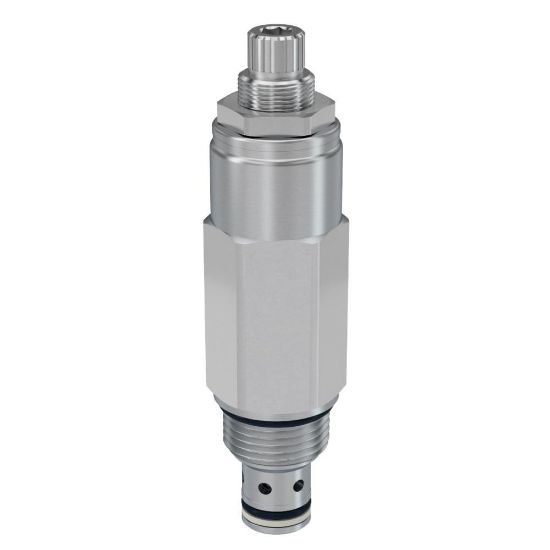

Direct Acting Differential Area Relief Valves - RDH083K30V

Name: Direct Acting Differential Area Relief Valves - RDH083K30V
SKU: RDH083K30V
Availability: OutOfStock

Parker’s direct acting differential area relief valves are for fast response intermittent applications and work up to 380 bar (5500 psi) and 151 lpm (40 gpm). These valves have lower leakage rates and pressure rise than standard direct acting reliefs.

Availability:

Backordered

SKU: RDH083K30V

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.19 kg	Seal Material	Fluorocarbon
Body Material	n/a	Maximum Operating Pressure	5500 psi
Minimum Operating Temperature	-15 °F	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Flow Rate	12 Gal/min
Function	Direct Acting	Actuation Type	Pressure Sensing
Maximum Pressure Setting	3000 psi	Cavity Size	C08-2
Operation Type	Automatic	Adjustment Mechanism	Knob
Maximum Tank Pressure	350 bar	Port Thread Size	n/a
Maximum Flow Rate	45 L/min	Maximum Inlet Pressure Rating	380 bar
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+400 °F
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-15 to +400 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Mounting Type	Screw in cartridge valve
Standard Setting Pressure	1500 psi	Cracking Pressure	N/A psi
Leak Rate	10 @ 75% Crack Pressure drops/min	Configuration	Differential Area Relief, Differential Relief w/Reverse Flow Check
Reseat Pressure	75% of pressure setting	Installation Torque	31 Nm
Pressure Control Range	1000-3000 psi	Pressure Control Sensitivity	27 per turn bar
Minimum Operating Pressure	380 bar
Seal Material	Fluorocarbon	Mounting Type	Screw in cartridge valve
Adjustment Mechanism	Knob	Cracking Pressure	N/A
Flow Rate	12 GAL/MIN, 45 L/MIN	Maximum Inlet Pressure Rating	5500 PSI, 380 BAR
Standard Setting Pressure	1500 PSI, 103.5 BAR	Pressure Control Range	1000-3000 PSI, 69-210 BAR
