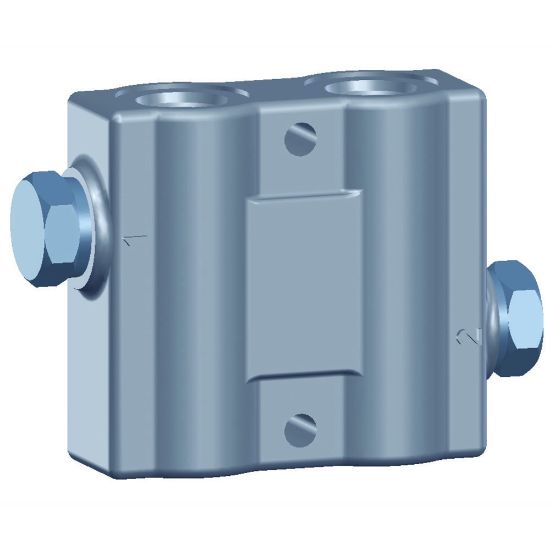

Direct Acting Crossover Relief - DXV Series - DXV-10-900

Name: Direct Acting Crossover Relief - DXV Series - DXV-10-900
SKU: DXV-10-900
Availability: OutOfStock

Parker’s DXV Crossover Relief Valve is a fast, direct acting design that provides pressure overload protection for an actuator where the relieved flow is 10 GPM or less.

Availability:

Backordered

SKU: DXV-10-900

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	For Fluid Type	Hydraulic Oil
Actuation Type	Hydraulic Pressure	Seal Material	Nitrile
Maximum Operating Pressure	3000 psi	Connection Type	SAE
Division	Hydraulic Valve Systems Division	Weight	4 lb
Maximum Operating Temperature	+200 °F	Maximum Flow Rate	10 Gal/min
Body Material	High Strength Cast Iron	Connection Size	#10
Mounting Type	In-Line	Pressure Control Range	750-900 psi
Port Size	SAE-10	Adjustment Type	Shim Adjustable
Pressure Relief Setting (psi)	750-900
