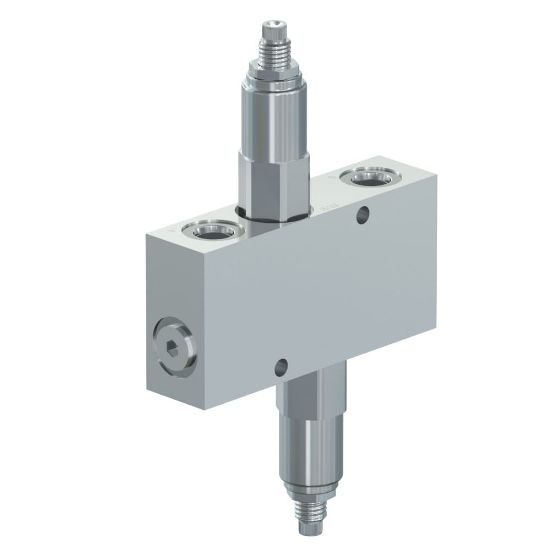

Direct Acting Cross-Over Relief Valves - XRDH101K10-8T

Name: Direct Acting Cross-Over Relief Valves - XRDH101K10-8T
SKU: XRDH101K10-8T
Availability: OutOfStock

Cross-Over Relief cartridge valves provide pressure protection to hydraulic motors, cylinders and rotary actuators up to 120 lpm (32 gpm) and 350 bar (5000 psi). Available in single or dual cartridge, in-line, manifold, or motor mount configurations.

Availability:

Backordered

SKU: XRDH101K10-8T

Qty:

Products specifications

Attribute name	Attribute value
Body Material	Steel	Maximum Operating Pressure	350 bar
Minimum Operating Temperature	-37 °C	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Maximum Operating Temperature	+200 °F
Function	Bi-directional	Configuration	Dual Cross-over Relief
Actuation Type	Pressure Sensing	Operation Type	Automatic
Adjustment Mechanism	Knob	Maximum Tank Pressure	5000 psi
Maximum Inlet Pressure Rating	350 bar	Seal Material	D-Ring (Standard)
Maximum Flow Rate	20 Gal/min	Weight	4.5 lb
Mounting Type	Line Mounted	Cavity Size	n/a
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Operating Temperature	-35 to +200 °F
Flow Rate	20 Gal/min	Installation Torque	N/A Nm
Port Thread Size	SAE-8	Maximum Pressure Setting	69 bar
Standard Setting Pressure	34.5 bar	Cracking Pressure	N/A psi
Pressure Control Range	100-1000 psi	Leak Rate	5 @ 75% Crack Pressure drops/min
Reseat Pressure	85% of pressure setting	Pressure Control Sensitivity	9.8 per turn bar
Adjustment Mechanism	Knob	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Cracking Pressure	N/A	Seal Material	D-Ring (Standard)
Mounting Type	Line Mounted	Pressure Control Range	100-1000 PSI, 6.9-69 BAR
Standard Setting Pressure	500 PSI, 34.5 BAR	Flow Rate	20 GPM, 75 L/MIN
