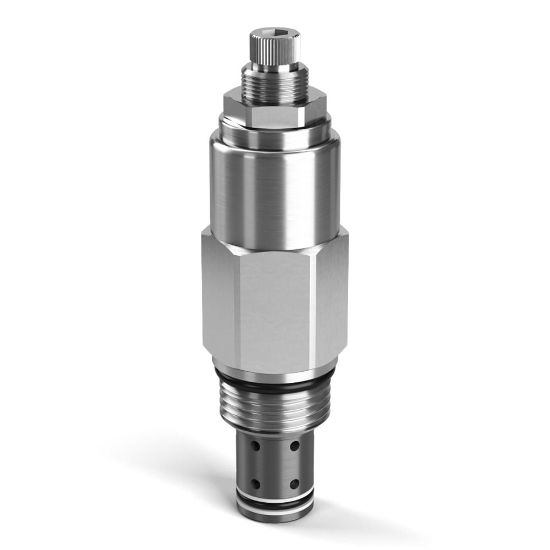

Direct Acting Cross-Over Relief Valves - XR101S20V

Name: Direct Acting Cross-Over Relief Valves - XR101S20V
SKU: XR101S20V
Availability: OutOfStock

Cross-Over Relief cartridge valves provide pressure protection to hydraulic motors, cylinders and rotary actuators up to 120 lpm (32 gpm) and 350 bar (5000 psi). Available in single or dual cartridge, in-line, manifold, or motor mount configurations.

Availability:

Backordered

SKU: XR101S20V

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Body Material	n/a
Maximum Operating Pressure	3500 psi	Minimum Operating Temperature	-26 °C
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Installation Torque	22 Nm	Maximum Inlet Pressure Rating	3500 psi
Maximum Flow Rate	60 L/min	Function	Bi-directional
Configuration	Dual Cross-over Relief	Actuation Type	Pressure Sensing
Cavity Size	C10-2	Operation Type	Automatic
Adjustment Mechanism	Screw	Port Thread Size	n/a
Flow Rate	16 Gal/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+400 °F	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-26 to +204 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Mounting Type	Screw in cartridge valve	Weight	0.58 lb
Standard Setting Pressure	1000 psi	Maximum Pressure Setting	138 bar
Cracking Pressure	N/A psi	Pressure Control Range	6.9-138 bar
Pressure Control Sensitivity	23 per turn bar	Reseat Pressure	80% of pressure setting
Leak Rate	10 @ 75% Crack Pressure drops/min	Maximum Tank Pressure	3500 psi
Seal Material	Fluorocarbon	Mounting Type	Screw in cartridge valve
Adjustment Mechanism	Screw	Cracking Pressure	N/A
Flow Rate	16 GAL/MIN, 60 L/MIN	Pressure Control Range	100-2000 PSI, 6.9-138 BAR
Standard Setting Pressure	1000 PSI, 69 BAR	Maximum Inlet Pressure Rating	3500 PSI, 245 BAR
