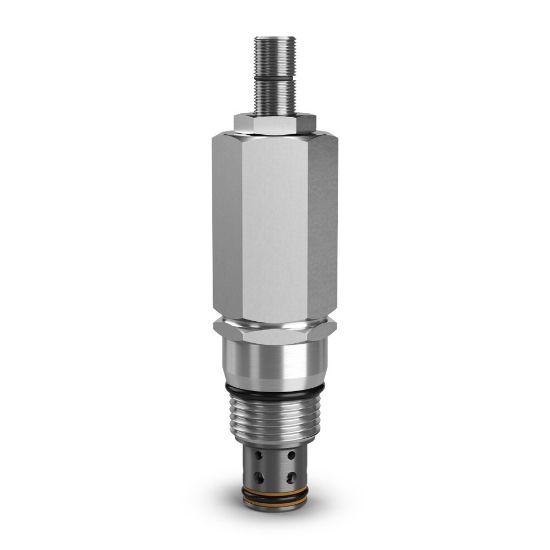

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Direct Acting Cross-Over Relief Valves - A04J2HWN

Name: Direct Acting Cross-Over Relief Valves - A04J2HWN
SKU: A04J2HWN
Availability: OutOfStock

Cross-Over Relief cartridge valves provide pressure protection to hydraulic motors, cylinders and rotary actuators up to 120 lpm (32 gpm) and 350 bar (5000 psi). Available in single or dual cartridge, in-line, manifold, or motor mount configurations.

Availability:

Backordered

SKU: A04J2HWN

Qty:

Products specifications

Attribute name	Attribute value
Maximum Pressure Setting	210 bar	Seal Material	Nitrile
Flow Rate	120 L/min	Body Material	n/a
Maximum Operating Pressure	5000 psi	Maximum Flow Rate	120 L/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	For Fluid Type	Mineral-based Hydraulic Fluids
Valve Material	Hardened Steel	Filter Efficiency Rating	ISO 4406 18/16/13
Minimum Operating Temperature	-30 °F	Maximum Operating Temperature	121 °C
Weight	0.29 kg	Function	Bi-directional
Configuration	Dual Cross-over Relief	Mounting Type	Screw-in Cartridge
Actuation Type	Pressure Sensing	Division	Mobile Hydraulic Systems Division Europe
Leak Rate	10	Cavity Size	C10-2
Operation Type	Automatic	Reseat Pressure	n/a
Installation Torque	37 lb-ft	Adjustment Mechanism	Knob
Maximum Tank Pressure	5000 psi	Operating Temperature	-34 to 121 °C
Pressure Control Range	72 to 3000 psi	Standard Setting Pressure	1450 psi
Pressure Control Sensitivity	25	Maximum Inlet Pressure Rating	350 bar
Port Thread Size	n/a	Cracking Pressure	n/a
Seal Material	Nitrile	Mounting Type	Screw in cartridge valve
Flow Rate	32 GAL/MIN, 120 L/MIN	Adjustment Mechanism	Knob
Pressure Control Range	72-3000 PSI, 5-210 BAR	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Cracking Pressure	N/A	Standard Setting Pressure	1450 PSI, 100 BAR
