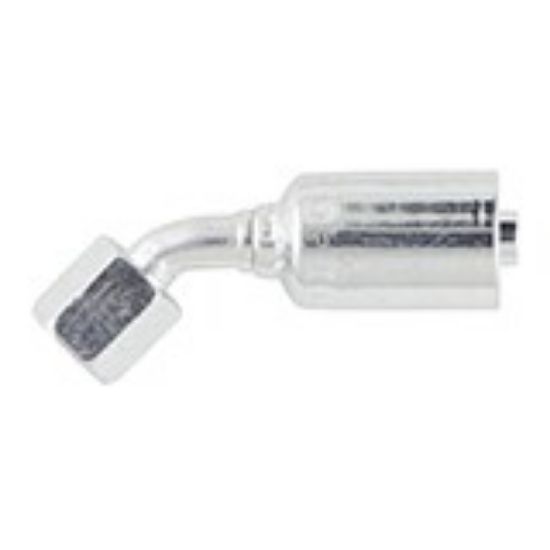

Crimp Style Hydraulic Hose Fitting – HY Series Fittings - 137HY-16-16

Configure permanent hose assemblies quickly, easily, and cost-effectively with compression-style HY Series fittings for use with Parkrimp crimpers.

Availability:	Backordered
Partner Available:	52 in stock

SKU: 137HY-16-16

$88.60

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Materials of Construction	Steel
Port Size	1 inch	Hose Inside Diameter	1 inch
Connection Size	1-5/16"-12 inch Thread	Product Style	Female JIC 37° - Swivel
Shape	Elbow 45° Short Drop
Hose I.D. (inch)	1"	Port Connection	1"
Connection Thread Size	1-5/16"-12
