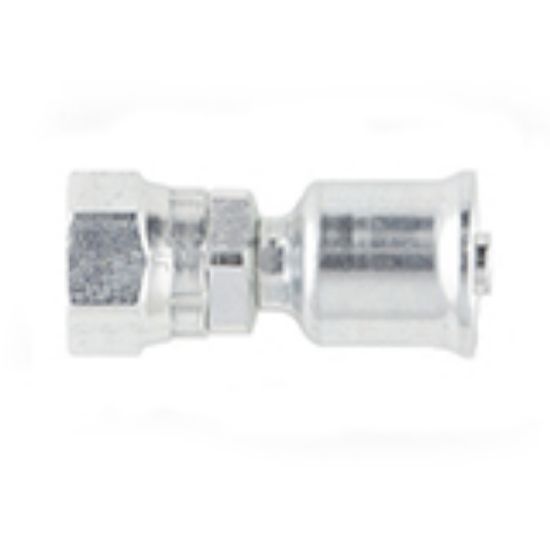

Crimp Style Hydraulic Hose Fitting – 26 Series Fittings - 1JC26-20-20

Parker's 26 series fittings are cost effective, permanent, compression style fittings made for easy and quick assembly using our family of Parkrimp crimpers.

Availability:	Backordered
Partner Available:	52 in stock

SKU: 1JC26-20-20

$81.39

Products specifications

Attribute name	Attribute value
Shape	Straight Short	Product Style	Female Seal-Lok® - Swivel
Port Size	1-1/4 inch	Materials of Construction	Steel
Hose Inside Diameter	28.6 mm	Division	Hose Products Division
Connection Size	1-11/16"-12 inch Thread
Product Style	Female Seal-Lok® - Swivel	Materials of Construction	Steel
Hose I.D. (size)	-20	Shape	Straight - Short
Port Connection	1-1/4"

Product resources

Literature and Reference Materials

FCG HPD Thermal Management Bulletin
Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment
