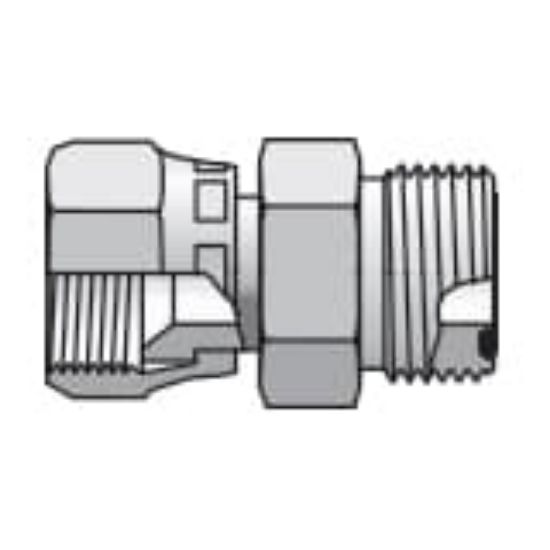

Conversion Adapters for Tube and Hose Connections - 12 LOHX6-S

Parker offers many different conversion adapters to support whatever tube or hose end conversion needed.

Availability:	5 in stock
Partner Available:	87 in stock

SKU: 12 LOHX6-S

$75.10

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Maximum Dynamic Pressure	5000 psi
Dimensional Weight	0.19784172661870503 lb	Connection Type	Conversion Adapter
Shape	Straight	Body Material	Steel
O-Ring Material	90 Durometer Nitrile	Connection 1 Tube O.D. (mm)	na
Connection 1 Style	Female 37° Flare Swivel	Connection 2 Style	Male O-ring Face Seal
Connection 1 Tube O.D. (inch)	3/4	Connection 2 Tube O.D. (inch)	3/4

Product resources

Literature and Reference Materials

Corrosion in Industrial Applications: How Next Generation Anti-Corrosion Plating Achieves Higher Fluid Power Product Performance
Industrial Tube Fittings, Adapters and Equipment - Cat. 4300
Parker ToughShield Plus Plating for Steel Fittings and Adapters--Bul. 4300-TSPlus

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok
