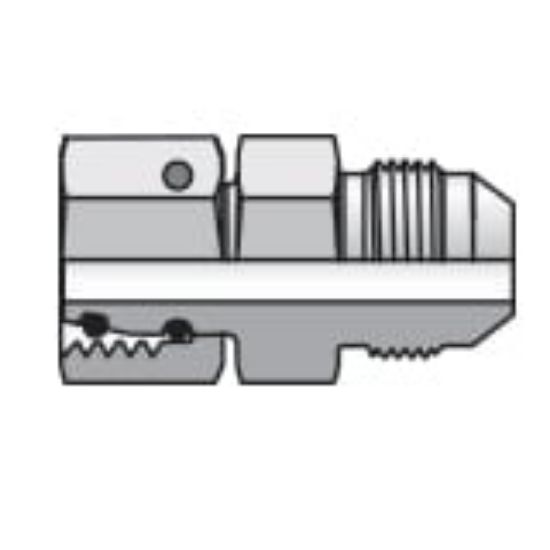

Conversion Adapters for Tube and Hose Connections - 10-16S XHU86-S

Parker offers many different conversion adapters to support whatever tube or hose end conversion needed.

Availability:	10 in stock
Partner Available:	34 in stock

SKU: 10-16S XHU86-S

$42.77

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Dimensional Weight	0.07913669064748201 lb
Maximum Dynamic Pressure	5000 psi	Connection Type	Conversion Adapter
O-Ring Material	na	Shape	Straight
Body Material	Steel	Connection 1 Tube O.D. (inch)	na
Connection 2 Tube O.D. (inch)	5/8	Connection 1 Style	Female Metric Flareless Swivel
Connection 2 Style	Male 37° Flare	Connection 1 Tube O.D. (mm)	16S

Product resources

Literature and Reference Materials

Corrosion in Industrial Applications: How Next Generation Anti-Corrosion Plating Achieves Higher Fluid Power Product Performance
Industrial Tube Fittings, Adapters and Equipment - Cat. 4300
Parker ToughShield Plus Plating for Steel Fittings and Adapters--Bul. 4300-TSPlus

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok
