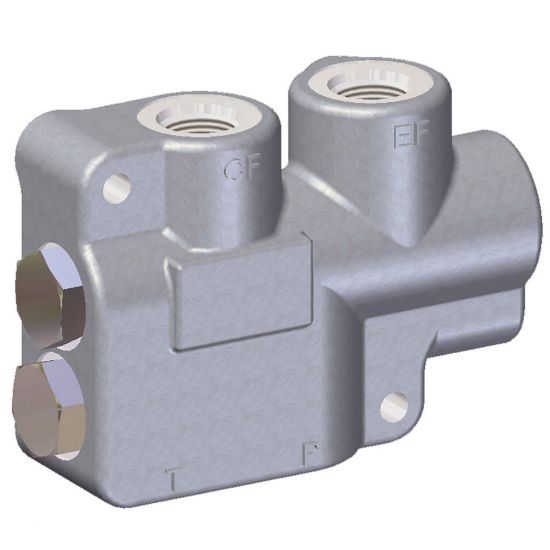

Constant Volume Priority Flow Control Valve – CFD Series - CFD-50-1.5

Name: Constant Volume Priority Flow Control Valve – CFD Series - CFD-50-1.5
SKU: CFD-50-1.5
Availability: OutOfStock

Parker’s CFD Controlled Flow/Priority Type Flow Divider is designed for providing a fixed 1-5 GPM controlled flow source for power steering systems and other applications where two separate hydraulic power circuits are to be served from a single pump.

Availability:

Backordered

SKU: CFD-50-1.5

Qty:

Products specifications

Attribute name	Attribute value
Maximum Flow Rate	n/a	Maximum Operating Pressure	2000 psi
Connection Size	3/8 to 1/2 inch	Seal Material	n/a
Division	Hydraulic Valve Systems Division	Actuation Type	Hydraulic Pressure
Maximum Operating Temperature	200 °F	Minimum Operating Temperature	-40 °F
Weight	3.6 kg	Configuration	Inline
Flow Rate	1.5 Gal/min	Body Material	Cast Iron
Connection Type	NPT	Function	Flow Control
Pressure Relief Valve	Standard	Flow Rate (gpm)	1.5
Connection Size	3/8 NPTF / 1/2 NPTF

Product resources

Literature and Reference Materials

HY14-2405 - Mobile Accessory Valve Catalog pages
