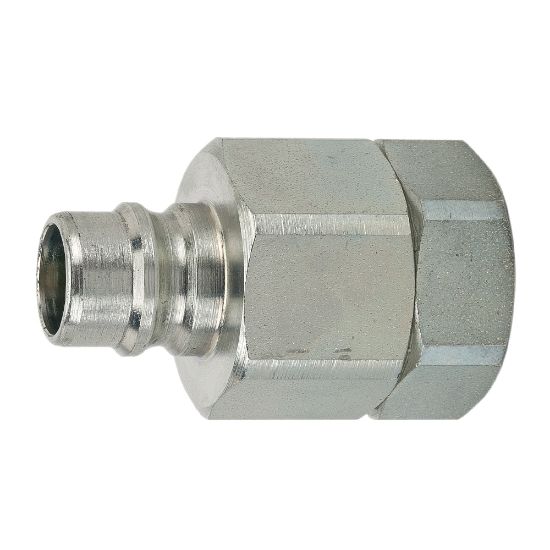

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Connect Under Pressure, Multi-Purpose Quick Couplings - PH Series - VPHN8-8F

Parker's general purpose connect under pressure quick couplers and nipples are versatile for use across a spectrum of applications where fluid lines require fast and easy connection and disconnection while under residual pressure

Availability:	Backordered
Partner Available:	Backordered

SKU: VPHN8-8F

$57.92

Products specifications

Attribute name	Attribute value
Application	General Purpose	Body Material	Steel
Product Type	Manual Connect	Maximum Operating Temperature	250 °F
Dimensional Weight	0.27302158273381294 lb	Minimum Operating Temperature	-40 °F
Valve Type	Poppet	Plating Type	Zinc with clear trivalent chromate
Maximum Operating Pressure	4000 psi	Division	Quick Coupling Division
Hex Size	1.19 inch	Seal Material	Nitrile
Body Size (inch)	1/2	Coupling Half	Male Nipple
Connection Thread Size (inch)	1/2 - 14	Connection Type	Female NPTF

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories

Literature and Reference Materials
