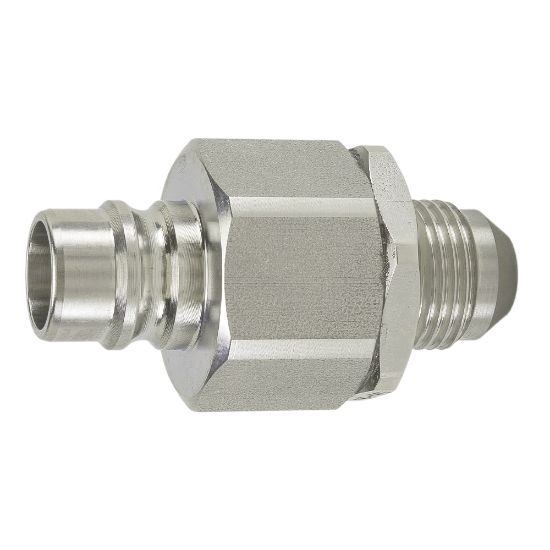

Connect Under Pressure, Multi-Purpose Quick Couplings - PH Series - VPHN8-8EM

Name: Connect Under Pressure, Multi-Purpose Quick Couplings - PH Series - VPHN8-8EM
SKU: VPHN8-8EM
Availability: OutOfStock

Parker's general purpose connect under pressure quick couplers and nipples are versatile for use across a spectrum of applications where fluid lines require fast and easy connection and disconnection while under residual pressure

Availability:

Backordered

SKU: VPHN8-8EM

Qty:

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Seal Material	Nitrile
Hex Size	1.19 inch	Body Material	Steel
Application	Hydraulic, General Purpose	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Valve Type	Poppet
Product Type	Manual Connect	Plating Type	Zinc with clear trivalent chromate
Maximum Operating Pressure	4000 psi
Body Size (inch)	1/2	Connection Thread Size (inch)	3/4 - 16
Coupling Half	Male Nipple	Connection Type	Male SAE 37 degree flare

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
