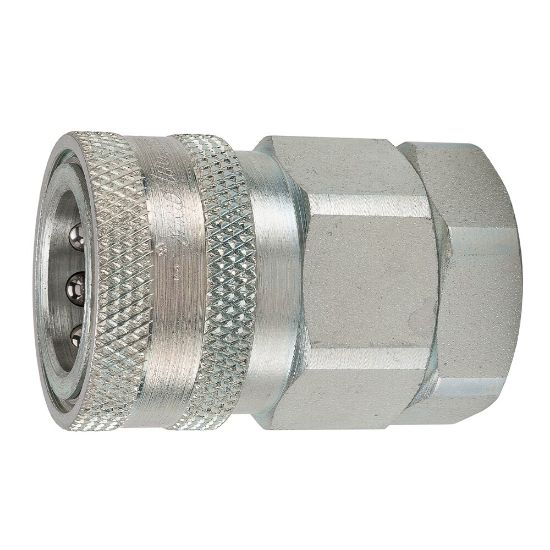

Connect Under Pressure, Multi-Purpose Quick Couplings - PH Series - VPHC6-6F

Name: Connect Under Pressure, Multi-Purpose Quick Couplings - PH Series - VPHC6-6F
SKU: VPHC6-6F
Availability: OutOfStock

Parker's general purpose connect under pressure quick couplers and nipples are versatile for use across a spectrum of applications where fluid lines require fast and easy connection and disconnection while under residual pressure

Availability:

Backordered

SKU: VPHC6-6F

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	4500 psi	Seal Material	Nitrile
Application	Hydraulic, General Purpose	Body Material	Steel
Maximum Operating Temperature	250 °F	Product Type	Manual Connect
Hex Size	1.00 inch	Minimum Operating Temperature	-40 °F
Valve Type	Poppet	Plating Type	Zinc with clear trivalent chromate
Division	Quick Coupling Division
Coupling Half	Female Coupler	Connection Type	Female NPTF
Body Size (inch)	3/8	Connection Thread Size (inch)	3/8 - 18
