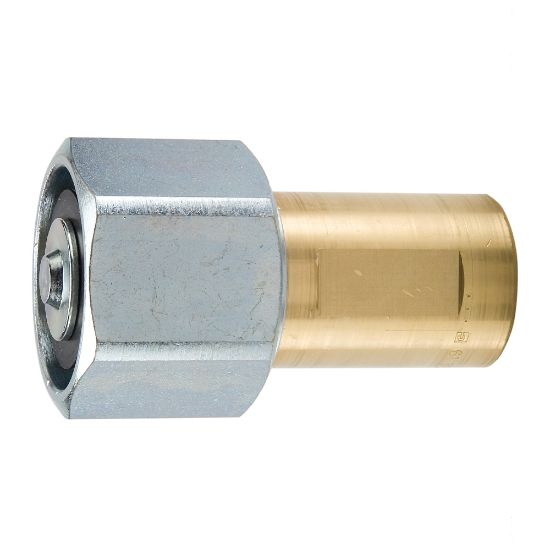

Connect Under Pressure, High Flow Quick Couplings - 6100 Series - 6135-08

Parker's low spill thread to connect couplers and nipples, wing nut or hex nut style, are ideal for use in applications where a high flow flush valve and connect under pressure is needed.

Availability:	Backordered
Partner Available:	15 in stock

SKU: 6135-08

$142.01

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	250 °F	Valve Type	Flat Face
Hex Size	1.16 inch	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	3000 psi	Plating Type	Zinc with Clear Trivalent Chromate on Steel Sleeve
Flow Rate	12 Gal/min	Connection Type	Female NPTF
Body Material	BRASS	Hex Size 2	1.75 inch
Seal Material	Nitrile	Product Type	Thread to Connect
Application	Hydraulics	Division	Quick Coupling Division
Dimensional Weight	0.31160071942446044 lb
Connection Thread Size (inch)	1/2 - 14	Sleeve Type	Hex nut
Coupling Half	Female Coupler	Body Size	3/4 Inch

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
