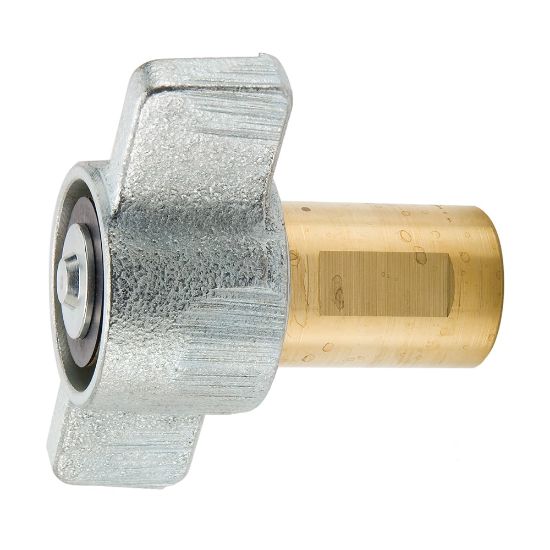

Connect Under Pressure, High Flow Quick Couplings - 6100 Series - 6125-08-BSPP

Name: Connect Under Pressure, High Flow Quick Couplings - 6100 Series - 6125-08-BSPP
SKU: 6125-08-BSPP
Availability: OutOfStock

Parker's low spill thread to connect couplers and nipples, wing nut or hex nut style, are ideal for use in applications where a high flow flush valve and connect under pressure is needed.

Availability:

Backordered

SKU: 6125-08-BSPP

Qty:

Products specifications

Attribute name	Attribute value
Application	Hydraulic, connect under pressure, high flow	Valve Type	Flat Face
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	3000 psi	Hex Size	1.16 inch
Plating Type	Zinc with Clear Trivalent Chromate on Steel Sleeve	Flow Rate	12 Gal/min
Body Material	BRASS	Seal Material	Nitrile
Hex Size 2	4.06 inch	Connection Type	BSPP
Product Type	Thread to Connect	Division	Quick Coupling Division
Connection Thread Size (inch)	1/2 - 14	Sleeve Type	Wing nut
Coupling Half	Female Coupler	Body Size	3/4 Inch

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
