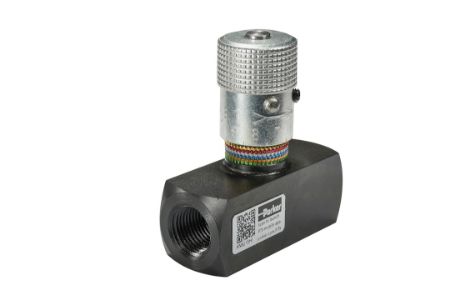

Colorflow In-Line General Purpose Needle Valve – N Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s N series valve is a two-step needle that allows fine adjustment at low flow by using the first three turns of the adjusting knob. The next three turns open the valve to full flow and provides standard throttling adjustments.
Markets:
• Factory Automation
• Machine Tools
• Marine
• Material Handling
• Mining
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Molding
• Oil &Gas
• Power Generation
• Vehicle Assembly Facilities
Features/Benefits:
• Tamperproof option available
• Set screw locks the valve on a desired setting
• Port sizes available in 8 sizes from 1/8” to 1 1/4”
• Material offerings are brass, steel and stainless steel
• Port options include ISO 6149, NPT, BSPP, BSPT and SAE
• The exclusive “Colorflow” color-band provide an accurate visual indication of setting
Applications:
• Suitable for general hydraulic applications
Read More...Markets:
• Factory Automation
• Machine Tools
• Marine
• Material Handling
• Mining
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Molding
• Oil &Gas
• Power Generation
• Vehicle Assembly Facilities
Features/Benefits:
• Tamperproof option available
• Set screw locks the valve on a desired setting
• Port sizes available in 8 sizes from 1/8” to 1 1/4”
• Material offerings are brass, steel and stainless steel
• Port options include ISO 6149, NPT, BSPP, BSPT and SAE
• The exclusive “Colorflow” color-band provide an accurate visual indication of setting
Applications:
• Suitable for general hydraulic applications
| Action | SKU | Availability | Partner Available | Price | Body Material | Minimum Operating Temperature | Actuation Type | Mounting Type | Seal Material | Connection Type | Maximum Operating Temperature | Division | Media | Maximum Operating Pressure | Brand | Maximum Flow Rate | Product Style | Body Material | Connection Type | Seal Material | Actuation Type | Maximum Flow Rate | Maximum Operating Pressure | Connection Size | Maximum Operating Temperature | Minimum Operating Temperature | Knob Option | Needle option |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9N1200B | Backordered | Backordered | $269.14 | BRASS | -40 °F | Manual | Inline | Nitrile | BSPP | 250 °F | Hydraulic Valve Systems Division | Oil | 2000 psi | Colorflow | 95 L/min | Needle Valve | BRASS | BSPP | Nitrile | Manual | 25 | 2000 | 12 | +205°F | -40.0 | Standard Knob | Standard | |
| 9N1200BF | Backordered | BRASS | -40 °F | Manual | Inline | Nitrile | BSPP | 250 °F | Hydraulic Valve Systems Division | Air | 2000 psi | Colorflow | 25 Gal/min | Needle Valve | BRASS | BSPP | Nitrile | Manual | 25 | 2000 | 12 | +205°F | -40.0 | Finger Screw | Standard | |||
| 9N1200B-V | Backordered | BRASS | -15 °F | Manual | Inline | Fluorocarbon | BSPP | 205 °C | Hydraulic Valve Systems Division | Oil | 2000 psi | Colorflow | 95 L/min | Needle Valve | BRASS | BSPP | Fluorocarbon | Manual | 25 | 2000 | 12 | +400° F | -15 | Standard Knob | Standard | |||
| 9N1200S | Backordered | Backordered | $216.35 | Steel | -40 °F | Manual | Inline | Nitrile | BSPP | 121 °C | Hydraulic Valve Systems Division | Oil | 5000 psi | Colorflow | 25 Gal/min | Needle Valve | Steel | BSPP | Nitrile | Manual | 25 | 5000 | 12 | +205°F | -40.0 | Standard Knob | Standard | |
| 9N1200SF | Backordered | 30 in stock | $220.68 | Steel | -40 °F | Manual | Inline | Nitrile | BSPP | 121 °C | Hydraulic Valve Systems Division | Oil | 5000 psi | Colorflow | 25 Gal/min | Needle Valve | Steel | BSPP | Nitrile | Manual | 25 | 5000 | 12 | +205°F | -40.0 | Finger Screw | Standard | |
| 9N1200ST | Backordered | 17 in stock | $293.37 | Steel | -40 °F | Manual | Inline | Nitrile | BSPP | 250 °F | Hydraulic Valve Systems Division | Oil | 5000 psi | Colorflow | 25 Gal/min | Needle Valve | Steel | BSPP | Nitrile | Manual | 25 | 5000 | 12 | +205°F | -40.0 | Tamperproof | Standard | |
| 9N1600B | Backordered | Backordered | $917.32 | BRASS | -40 °F | Manual | Inline | Nitrile | BSPP | 250 °F | Hydraulic Valve Systems Division | Oil | 500 psi | Colorflow | 151 L/min | Needle Valve | BRASS | BSPP | Nitrile | Manual | 40 | 500 | 1 | +205°F | -40.0 | Standard Knob | Standard | |
| 9N1600B-V | Backordered | BRASS | -15 °F | Manual | Inline | Fluorocarbon | BSPP | 400 °F | Hydraulic Valve Systems Division | Oil | 500 psi | Colorflow | 40 Gal/min | Needle Valve | BRASS | BSPP | Fluorocarbon | Manual | 40 | 500 | 1 | +400° F | -15 | Standard Knob | Standard | |||
| 9N1600S | Backordered | 34 in stock | $630.01 | Steel | -40 °F | Manual | Inline | Nitrile | BSPP | 121 °C | Hydraulic Valve Systems Division | Oil | 3000 psi | Colorflow | 40 Gal/min | Needle Valve | Steel | BSPP | Nitrile | Manual | 40 | 3000 | 1 | +205°F | -40.0 | Standard Knob | Standard | |
| 9N2000S | Backordered | Backordered | $842.90 | Steel | -40 °F | Manual | Inline | Nitrile | BSPP | 250 °F | Hydraulic Valve Systems Division | Oil | 3000 psi | Colorflow | 264 L/min | Needle Valve | Steel | BSPP | Nitrile | Manual | 70 | 3000 | 1-1/4 | +205°F | -40.0 | Standard Knob | Standard | |
| 9N200B | Backordered | Backordered | $133.27 | BRASS | -40 °F | Manual | Inline | Nitrile | BSPP | 250 °F | Hydraulic Valve Systems Division | Oil | 2000 psi | Colorflow | 11 L/min | Needle Valve | BRASS | BSPP | Nitrile | Manual | 3 | 2000 | 1/8 | +205°F | -40.0 | Standard Knob | Standard | |
| 9N200B4 | Backordered | BRASS | -40 °F | Manual | Inline | Nitrile | BSPP | 250 °F | Hydraulic Valve Systems Division | Air | 2000 psi | Colorflow | 11 L/min | Needle Valve | BRASS | BSPP | Nitrile | Manual | 3 | 2000 | 1/8 | +205°F | -40.0 | Standard Knob | Fine Metering | |||
| 9N200BF | Backordered | Backordered | $141.93 | BRASS | -40 °F | Manual | Inline | Nitrile | BSPP | 121 °C | Hydraulic Valve Systems Division | Oil | 2000 psi | Colorflow | 11 L/min | Needle Valve | BRASS | BSPP | Nitrile | Manual | 3 | 2000 | 1/8 | +205°F | -40.0 | Finger Screw | Standard | |
| 9N200B-V | Backordered | Backordered | $150.58 | BRASS | -26 °C | Manual | Inline | Fluorocarbon | BSPP | 400 °F | Hydraulic Valve Systems Division | Oil | 2000 psi | Colorflow | 3 Gal/min | Needle Valve | BRASS | BSPP | Fluorocarbon | Manual | 3 | 2000 | 1/8 | +400° F | -15 | Standard Knob | Standard | |
| 9N200S | Backordered | Backordered | $128.94 | Steel | -40 °F | Manual | Inline | Nitrile | BSPP | 250 °F | Hydraulic Valve Systems Division | Oil | 5000 psi | Colorflow | 3 Gal/min | Needle Valve | Steel | BSPP | Nitrile | Manual | 3 | 5000 | 1/8 | +205°F | -40.0 | Standard Knob | Standard | |
| 9N200S4 | Backordered | Backordered | $185.20 | Steel | -40 °F | Manual | Inline | Nitrile | BSPP | 250 °F | Hydraulic Valve Systems Division | Oil | 5000 psi | Colorflow | 3 Gal/min | Needle Valve | Steel | BSPP | Nitrile | Manual | 3 | 5000 | 1/8 | +205°F | -40.0 | Standard Knob | Fine Metering | |
| 9N200S4F | Backordered | Steel | -40 °F | Manual | Inline | Nitrile | BSPP | 250 °F | Hydraulic Valve Systems Division | Oil | 5000 psi | Colorflow | 3 Gal/min | Needle Valve | Steel | BSPP | Nitrile | Manual | 3 | 5000 | 1/8 | +205°F | -40.0 | Finger Screw | Fine Metering | |||
| 9N200S4T | Backordered | Backordered | $239.72 | Steel | -40 °F | Manual | Inline | Nitrile | BSPP | 250 °F | Hydraulic Valve Systems Division | Oil | 5000 psi | Colorflow | 3 Gal/min | Needle Valve | Steel | BSPP | Nitrile | Manual | 3 | 5000 | 1/8 | +205°F | -40.0 | Tamperproof | Fine Metering | |
| 9N200SF | Backordered | Backordered | $137.60 | Steel | -40 °F | Manual | Inline | Nitrile | BSPP | 250 °F | Hydraulic Valve Systems Division | Oil | 5000 psi | Colorflow | 11 L/min | Needle Valve | Steel | BSPP | Nitrile | Manual | 3 | 5000 | 1/8 | +205°F | -40.0 | Finger Screw | Standard | |
| 9N200S-V | Backordered | Backordered | $147.12 | Steel | -15 °F | Manual | Inline | Fluorocarbon | BSPP | 400 °F | Hydraulic Valve Systems Division | Oil | 5000 psi | Colorflow | 3 Gal/min | Needle Valve | Steel | BSPP | Fluorocarbon | Manual | 3 | 5000 | 1/8 | +400° F | -15 | Standard Knob | Standard |
