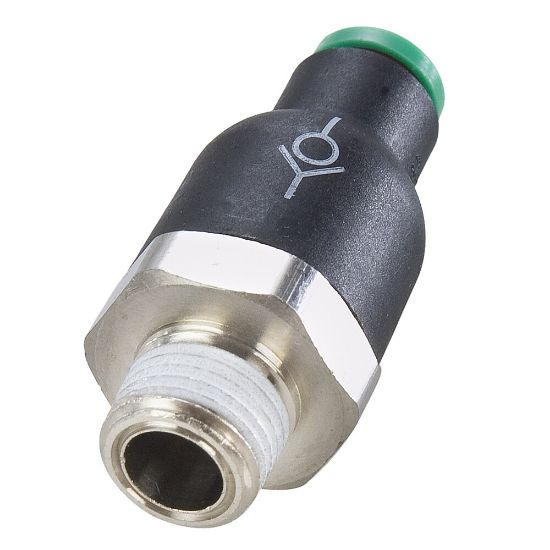

Check Valves - 68PLCKI-6M-2G

Parker's check valves allow compressed air to flow in one direction and prevent it from flowing in the other. Fitted upstream of the circuit to be protected, they provide total protection.

Availability:	Backordered
Partner Available:	Backordered

SKU: 68PLCKI-6M-2G

$30.02

Products specifications

Attribute name	Attribute value
Connection 2 Thread Size	1/8 mm	Connection 1 Size	Push-to-Connect
Connection Type	BSPP	Body Material	Nylon
Maximum Operating Pressure	10 bar	Thread Material	Plated Brass
Cracking Pressure	7 psi	Division	Fluid System Connectors Division
Connection 1 Thread Size	N/A	Maximum Operating Temperature	150 °F
Gripping Ring Material	STAINLESS STEEL	Shape	Threaded
Seal Material	Nitrile	Connection 1 Tube Outside Diameter	6 mm
Minimum Operating Temperature	34 °F	Media	Compressed Air
Valve Configuration	One Way	Application	Pneumatics, Robotics, Textile, Semi-conductors, Packaging
Product Style	Tube to Pipe	Connection 2 Size	BSPP
Connection 2 Tube Outside Diameter	N/A
