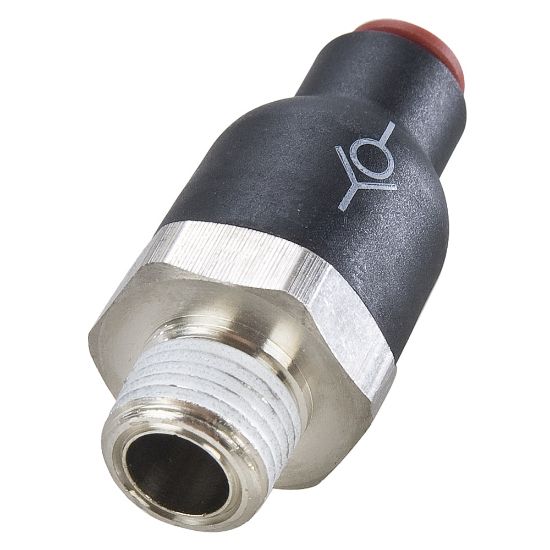

Check Valves - 68PLCK-8M-2G

Parker's check valves allow compressed air to flow in one direction and prevent it from flowing in the other. Fitted upstream of the circuit to be protected, they provide total protection.

Availability:	Backordered
Partner Available:	Backordered

SKU: 68PLCK-8M-2G

$30.84

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	145 psi	Thread Material	Plated Brass
Cracking Pressure	7 psi	Maximum Operating Temperature	65 °C
Connection 2 Thread Size	N/A	Division	Fluid System Connectors Division
Shape	Threaded	Connection 1 Thread Size	N/A
Gripping Ring Material	STAINLESS STEEL	Application	Textile
Seal Material	Nitrile	Minimum Operating Temperature	1 °C
Media	Compressed Air	Connection Type	BSPP
Valve Configuration	One Way	Product Style	Tube to Pipe
Connection 2 Tube Outside Diameter	N/A	Connection 2 Size	BSPP
Connection 1 Tube Outside Diameter	8 mm	Connection 1 Size	Push-to-Connect
Body Material	Nylon
