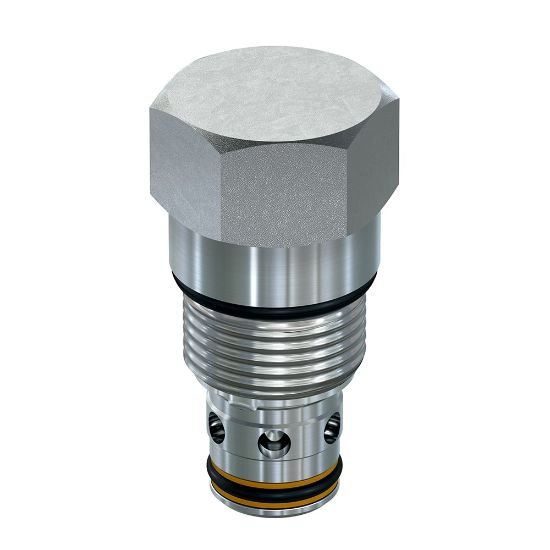

Check Valve with Thermal Relief - D04F2-2.5-90N

Name: Check Valve with Thermal Relief - D04F2-2.5-90N
SKU: D04F2-2.5-90N
Availability: OutOfStock

Parker’s poppet style check valve with thermal relief allow flows up to 130 lpm (40 gpm) and pressure to 420 bar (6,000 psi), with thermal relieving in the reverse direction to protect the circuit from high hydraulic fluid thermal expansion pressures.

Availability:

Backordered

SKU: D04F2-2.5-90N

Qty:

Products specifications

Attribute name	Attribute value
Connection Size	n/a	Maximum Operating Pressure	420 bar
Connection Type	n/a	Seal Material	Nitrile
Body Material	n/a	Flow Direction	Bi-directional
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	For Fluid Type	Synthetic Hydraulic Fluids
Filter Efficiency Rating	SAE Class 4	Maximum Operating Temperature	121 °C
Minimum Operating Temperature	-34 °C	Flow Rate	130 L/min
Mounting Type	Screw-in Cartridge	Actuation Type	Pressure Sensing
Division	Mobile Hydraulic Systems Division Europe	Cavity Size	C10-2
Valve Material	Hardened Steel (all operating parts)	Installation Torque	37 lb-ft
Operating Temperature	-30 to 250 °F	Maximum Inlet Pressure Rating	420 bar
Cracking Pressure	2.5 bar	Weight	0.29 lb
Function	Thermal Relief	Leak Rate	3 drops/min @ Crack Pressure
Maximum Flow Rate	130 L/min	Configuration	Poppet Type
Operation Type	Check Valve W/Relief Feature	Pressure Relief Setting	90 bar
Seal Material	Nitrile	Cracking Pressure	36 PSI, 2.5 BAR
Flow Rate	40 GAL/MIN, 130 L/MIN	Pressure Relief Setting	1305 PSI, 90 BAR
