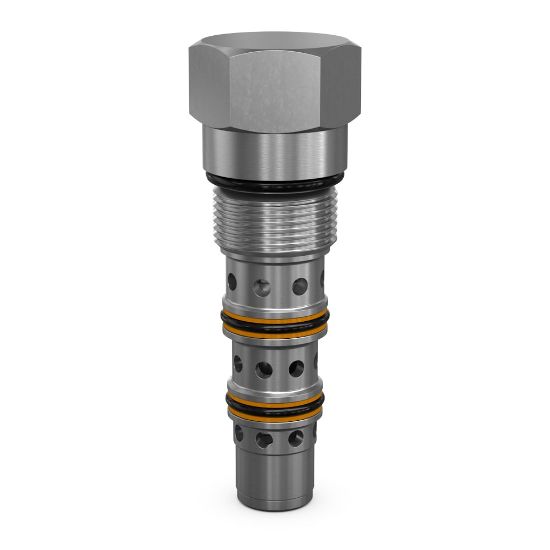

Cartridge Spool Type Shuttle Valves with All Ports Open - K04F3-10.0V

Name: Cartridge Spool Type Shuttle Valves with All Ports Open - K04F3-10.0V
SKU: K04F3-10.0V
Availability: OutOfStock

REGIONAL - Parker's 3-position, 3-way spool type open center shuttle valves are available in two cavity sizes and are pilot controlled. These shuttle valves are capable of flows up to 100 lpm (26 gpm) and 420 bar (6000 psi).

Availability:

Backordered

SKU: K04F3-10.0V

Qty:

Products specifications

Attribute name	Attribute value
Function	Shuttle	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Body Material	n/a	Operating Temperature	-15 to +400 °F
Weight	0.17 kg	Cavity Size	C10-4
Flow Rate	100 L/min	Valve Material	All parts steel. All operating parts hardened steel
Configuration	3-way Spool Type	Division	Mobile Hydraulic Systems Division Europe
Switching Pressure	145 psi	Minimum Operating Temperature	-15 °F
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operation Type	Spring Centered, All Parts Open
Installation Torque	37 lb-ft	Maximum Inlet Pressure Rating	6000 psi
Maximum Flow Rate	26 Gal/min	Actuation Type	Pressure Sensing
Maximum Operating Temperature	+400 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Standard Flow Rate Setting	15 Gal/min	Seal Material	Fluorocarbon
Leak Rate	n/a	Maximum Operating Pressure	420 bar
Flow Rate	26 GAL/MIN, 100 L/MIN	Seal Material	Fluorocarbon
Switching Pressure	145 PSI, 10 BAR
