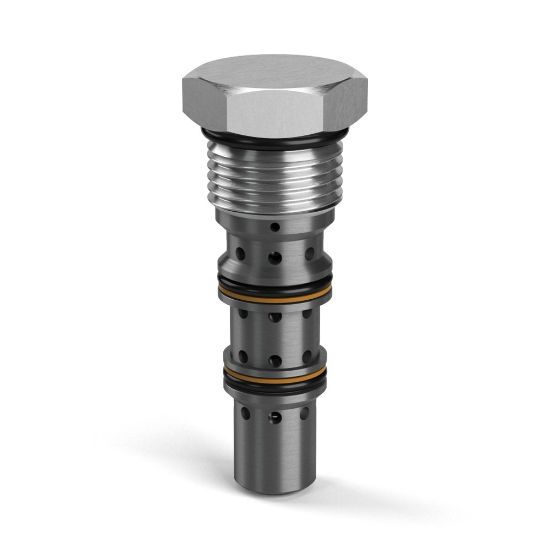

Cartridge Spool Type Inverse Shuttle Valves - K04G3N

Name: Cartridge Spool Type Inverse Shuttle Valves - K04G3N
SKU: K04G3N
Availability: OutOfStock

REGIONAL - Parker’s K04G3 shuttle is a three way, spring centered inverse style shuttle valve used in dual accumulator circuits to ensure equal charging pressure for each accumulator.

Availability:

Backordered

SKU: K04G3N

Qty:

Products specifications

Attribute name	Attribute value
Cavity Size	C10-4	Flow Rate	50 L/min
Valve Material	All parts steel. All operating parts hardened steel	Division	Mobile Hydraulic Systems Division Europe
Leak Rate	5 @ 1450 PSI (100 BAR) drops/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operating Temperature	-30 to +250 °F	Seal Material	Nitrile
Maximum Operating Temperature	+121 °C	Minimum Operating Temperature	-30 °F
Maximum Inlet Pressure Rating	5000 psi	Weight	0.31 lb
Actuation Type	Pressure Sensing	Function	Inverse Shuttle
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Installation Torque	50 Nm	Maximum Operating Pressure	5000 psi
Maximum Flow Rate	50 L/min	Configuration	3-Way Ball Type
Operation Type	Spring Centered	Body Material	n/a
Flow Rate	13 GAL/MIN, 50 L/MIN	Seal Material	Nitrile
