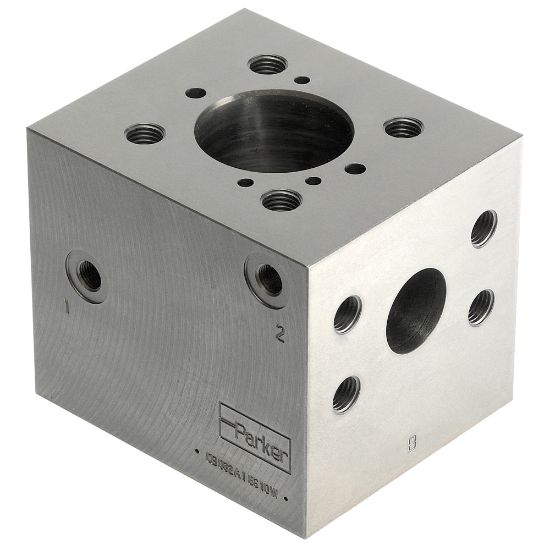

Cartridge Manifold Block - Series CB - CB016A13410W

Name: Cartridge Manifold Block - Series CB - CB016A13410W
SKU: CB016A13410W
Availability: OutOfStock

Parker cartridge manifold blocks series CB are bodies for 2/2-way slip-in cartridge valves. They are used in systems with only one cartridge valve without the need to design a specific manifold block.

Availability:

Backordered

SKU: CB016A13410W

Qty:

Products specifications

Attribute name	Attribute value
Division	Industrial Systems Division Europe	Minimum Operating Temperature	-20 °C
Maximum Operating Pressure	350 bar	Weight	6 kg
Product Series	Manifold	Body Material	Steel
Number of Manifold Stations	For 1 Cartridge	Maximum Operating Temperature	60 °C
For Fluid Type	Hydraulic Oil	Maximum Flow Rate	n/a
Actuation Type	n/a	Seal Material	n/a
Function	In to Out
Flange Size	1 SAE61	Port Connection	NG16
