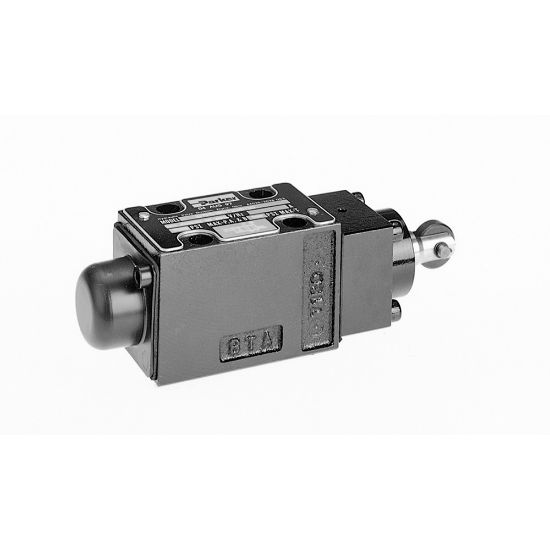

Cam Operated Directional Control Valve - D1VC, D1VD, D1VG Series - D1VG002HN

Name: Cam Operated Directional Control Valve - D1VC, D1VD, D1VG Series - D1VG002HN
SKU: D1VG002HN
Availability: OutOfStock

Parker’s D1VC, D1VD and D1VG directional control valves are high performance, 4-chamber, direct operated, cam controlled, 4-way valves.

Availability:

Backordered

SKU: D1VG002HN

Qty:

Products specifications

Attribute name	Attribute value
Mounting Type	Manifold	Valve Type	Industrial Cam Operated Directional Control Valve
Seal Material	Nitrile	Maximum Operating Pressure	5000 psi
Maximum Operating Temperature	140 °F	Body Material	Steel
Weight	1.6 kg	Spool Position	Spring Offset Operator at "B" port end
Actuation Type	Cam Lever	Maximum Flow Rate	22.0 Gal/min
Division	Hydraulic Valve Systems Division	Spool Code	4-Way
Size	CETOP 3
Actuation Type	Cam Lever	Size	NFPA3; CETOP 3; NG192
Maximum Flow Rate	22 GPM	Mounting Type	Subplate
Maximum Operating Pressure	3000 PSI
