Brass Pneumatic Hose Barbs for Tubing, Dubl-Barb - 238-4-4

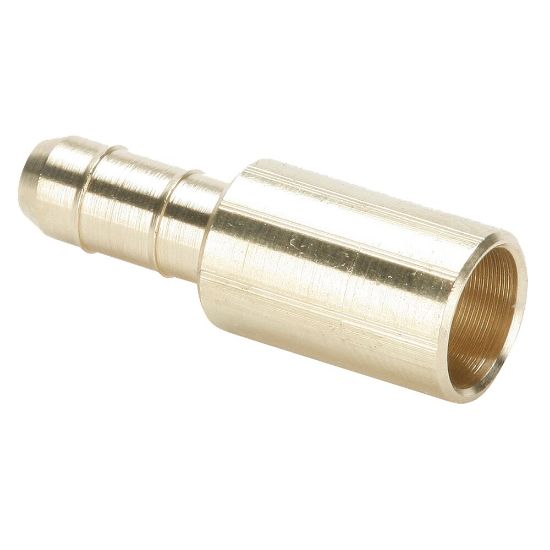

Parker's Dubl-barb push-on hose barb is a compact one piece fitting for a quick, economical way to connect polyethylene tubing.

Availability:	Backordered
Partner Available:	14 in stock

SKU: 238-4-4

$4.18

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-65 °F	Tube Material	Polyethylene
Maximum Operating Temperature	90 °F
Connection 3 Style	na	Connection 3 Thread Size (inch)	na
Connection 2 Thread Size (inch)	na	Shape	Connector
Connection 1 Style	Barb	Connection 1 Tube O.D. (inch)	1/4
Connection 2 Tube O.D. (inch)	1/4	Style	Tube to Solder
Connection 2 Style	Solder
