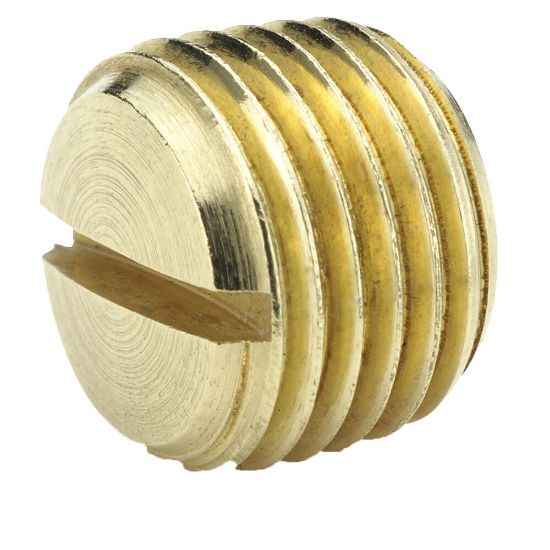

Brass Pipe Fittings - 220P-4

Parker's forged and extruded brass pipe fittings meet functional requirements of SAE J530 and SAE J531.

Availability:	Backordered
Partner Available:	348 in stock

SKU: 220P-4

$2.88

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Body Material	BRASS
Maximum Operating Temperature	250 °F	Tube Material	Copper, Brass, Iron Pipe
Specifications Met	SAE J530, SAE J531	Maximum Operating Pressure	68 bar
Minimum Operating Temperature	-53 °C
Length	n/a	Connection 1 Size	1/4"
Connection 1 Type	Male Pipe	Product Style	Slotted Head Plug
