*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Brass Pipe Fittings - 209P-12-8

Parker's forged and extruded brass pipe fittings meet functional requirements of SAE J530 and SAE J531.

Availability:	323 in stock
Partner Available:	2036 in stock

SKU: 209P-12-8

$7.55

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Body Material	BRASS
Maximum Operating Pressure	1000 psi	Tube Material	Copper, Brass, Iron Pipe
Maximum Operating Temperature	121 °C	Specifications Met	SAE J530, SAE J531
Dimensional Weight	0.2759 lb	Minimum Operating Temperature	-65 °F
Connection 2 Size	1/2"	Length	n/a
Connection 2 Type	Female Pipe	Connection 1 Type	Male Pipe
Connection 1 Size	3/4"	Product Style	Bushing

Customers who bought this item also bought

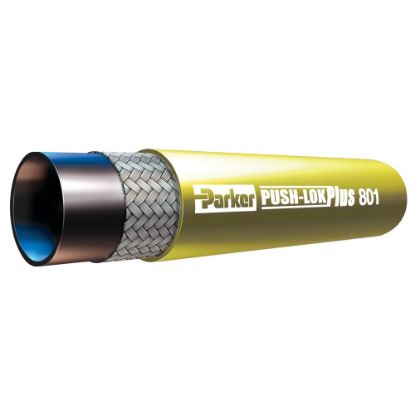

Push-Lok Plus Multipurpose Hose 200-350 PSI – 801 Hose - 801-8-YEL

Parker's 801 hose has a pressure range of 200-350 PSI, and is amongst the Push-Lok Plus multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry.

$4.04

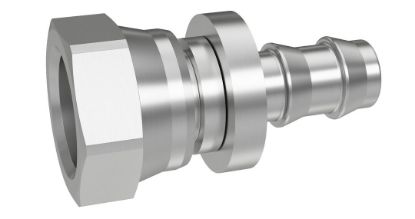

Push On Field Attachable Hydraulic Hose Fitting - 82 Series Fittings - 37G82-8-8
