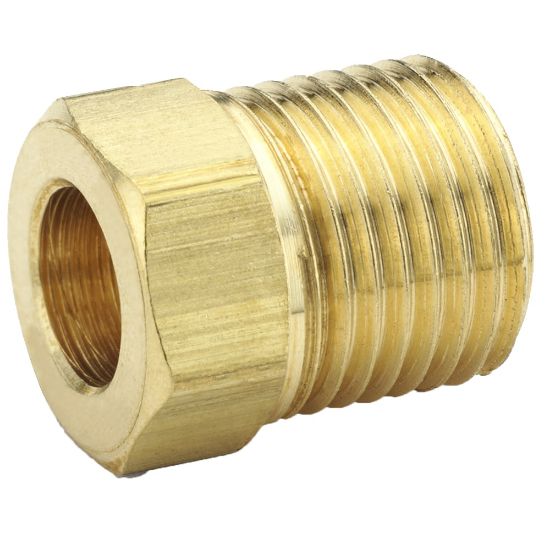

Brass Inverted Flare Fittings - 41IF-6

Parker's economical inverted flare fittings offer a metal-to-metal seal that is internal to the fitting for tighter tube bends. Meets functional requirements of SAE J512

Availability:	Backordered
Partner Available:	112 in stock

SKU: 41IF-6

$3.34

Products specifications

Attribute name	Attribute value
Specifications Met	SAE J512	Body Material	BRASS
Application	Pumps, Brake Lines	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Division	Fluid System Connectors Division	Nut Material	Brass, Zinc Chromate Steel
Maximum Operating Pressure	69 bar	Minimum Operating Temperature	-53 °C
Maximum Operating Temperature	250 °F	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Connection 1 Style	Inverted Flare	Style	Flare
Connection 2 Style	na	Connection 2 Thread Size (inch)	na
Shape	Nut	Connection 1 Tube O.D. (inch)	3/8
Connection 2 Tube O.D. (inch)	na
