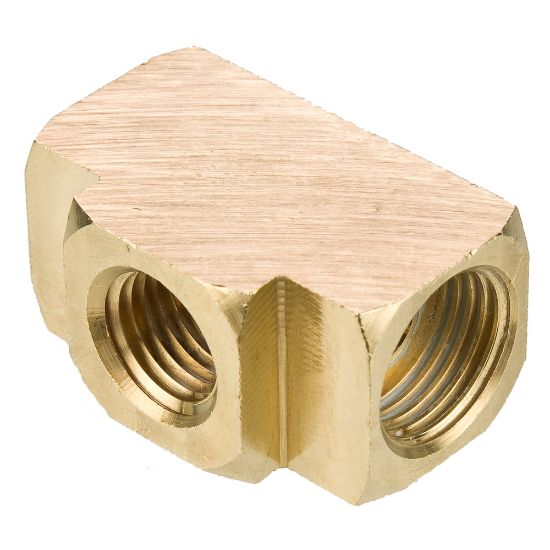

Brass Inverted Flare Fittings - 252IFHD-6-4

Parker's economical inverted flare fittings offer a metal-to-metal seal that is internal to the fitting for tighter tube bends. Meets functional requirements of SAE J512

Availability:	Backordered
Partner Available:	31 in stock

SKU: 252IFHD-6-4

$24.04

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Body Material	BRASS
Maximum Operating Pressure	1000 psi	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-53 °C	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Application	Pumps, Brake Lines
Specifications Met	SAE J512	Nut Material	Brass, Zinc Chromate Steel
Shape	Branch Tee	Connection 2 Tube O.D. (inch)	na
Connection 1 Tube O.D. (inch)	3/8	Connection 2 Thread Size (inch)	1/4
Connection 2 Style	Male Pipe	Connection 1 Style	Inverted Flare
Style	Flare to Female Pipe
