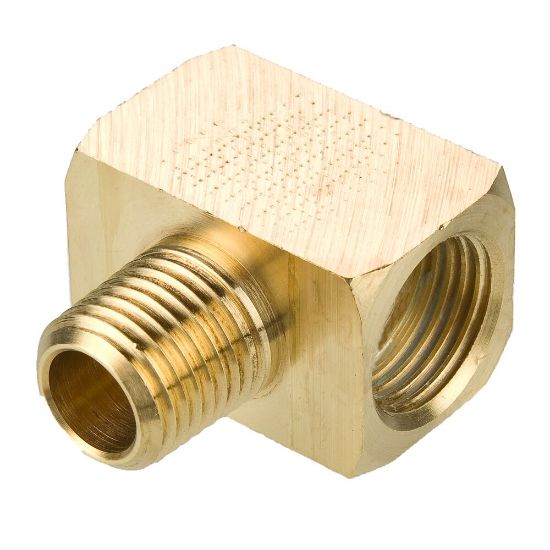

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Brass Inverted Flare Fittings - 245IFHD-4-2

Parker's economical inverted flare fittings offer a metal-to-metal seal that is internal to the fitting for tighter tube bends. Meets functional requirements of SAE J512

Availability:	Backordered
Partner Available:	21 in stock

SKU: 245IFHD-4-2

$21.08

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Body Material	BRASS
Maximum Operating Temperature	121 °C	Minimum Operating Temperature	-53 °C
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Maximum Operating Pressure	1400 psi	Application	Pumps, Brake Lines
Specifications Met	SAE J512	Nut Material	Brass, Zinc Chromate Steel
Shape	Branch Tee	Connection 2 Thread Size (inch)	1/8
Connection 2 Tube O.D. (inch)	na	Connection 1 Tube O.D. (inch)	1/4
Connection 2 Style	Male Pipe	Style	Flare to Pipe
Connection 1 Style	Inverted Flare
