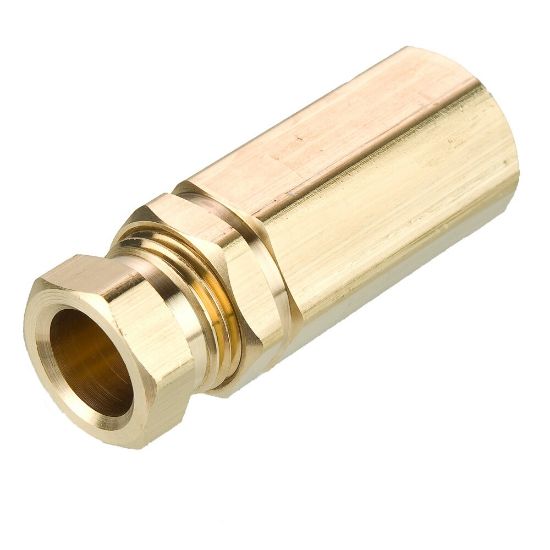

Brass flareless tube fitting, Hi-Duty - 66HD-4-4

Parker's Hi-Duty fitting is a preassembled brass fitting fitting with a sleeve machined onto the nut. This unique design creates tight joints that withstand pressures of most commomly used types of tubing.

Availability:	Backordered
Partner Available:	Backordered

SKU: 66HD-4-4

$17.35

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	250 °F	Nut Material	BRASS
Minimum Operating Temperature	-54 °C	Application	Tube Assemblies, Engine, Compressors
Tube Material	Tube Assemblies, Engine, Compressors	Sleeve Material	BRASS
Division	Fluid System Connectors Division	Body Material	BRASS
Maximum Operating Pressure	2100 psi
Style	Tube to Female Pipe	Shape	Connector
Connection 2 Tube O.D. (inch)	na	Connection 2 Style	Female Pipe
Connection 2 Thread Size (inch)	1/4	Connection 1 Style	Compression
Connection 1 Tube O.D. (inch)	1/4
