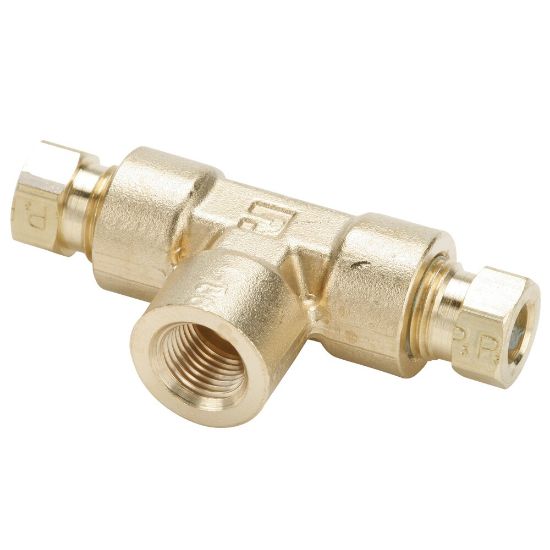

Brass flareless tube fitting, Hi-Duty - 177HD-4-4

Parker's Hi-Duty fitting is a preassembled brass fitting fitting with a sleeve machined onto the nut. This unique design creates tight joints that withstand pressures of most commomly used types of tubing.

Availability:	Backordered
Partner Available:	Backordered

SKU: 177HD-4-4

$56.40

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Nut Material	BRASS
Body Material	BRASS	Sleeve Material	BRASS
Maximum Operating Temperature	250 °F	Application	Tube Assemblies, Engine, Compressors
Maximum Operating Pressure	145 bar	Minimum Operating Temperature	-54 °C
Tube Material	Tube Assemblies, Engine, Compressors
Shape	Branch Tee	Connection 2 Tube O.D. (inch)	na
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	1/4
Style	Tube to Pipe	Connection 2 Thread Size (inch)	1/4
Connection 2 Style	Female Pipe
