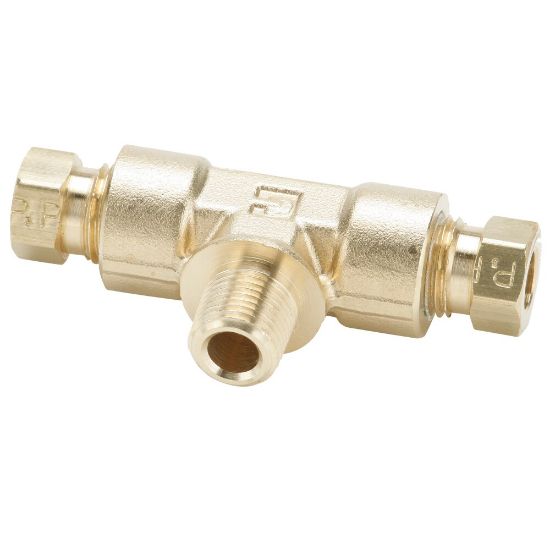

Brass flareless tube fitting, Hi-Duty - 172HD-4-4

Parker's Hi-Duty fitting is a preassembled brass fitting fitting with a sleeve machined onto the nut. This unique design creates tight joints that withstand pressures of most commomly used types of tubing.

Availability:	Backordered
Partner Available:	Backordered

SKU: 172HD-4-4

$27.94

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Nut Material	BRASS
Body Material	BRASS	Sleeve Material	BRASS
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-65 °F
Application	Tube Assemblies, Engine, Compressors	Tube Material	Tube Assemblies, Engine, Compressors
Maximum Operating Pressure	2100 psi
Shape	Branch Tee	Connection 2 Tube O.D. (inch)	na
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	1/4
Style	Tube to Pipe	Connection 2 Thread Size (inch)	1/4
Connection 2 Style	Male Pipe
