*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

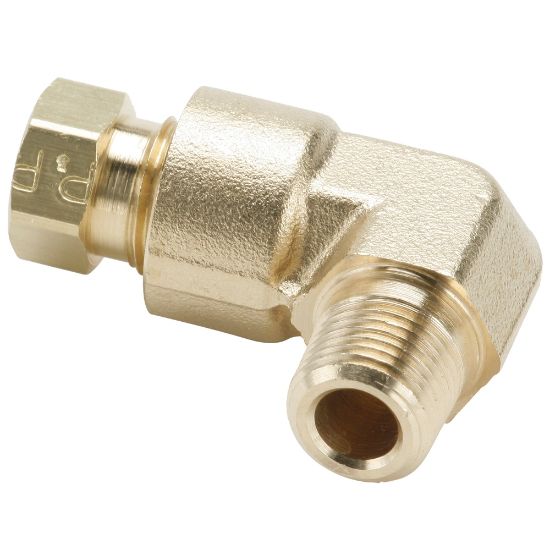

Brass flareless tube fitting, Hi-Duty - 169HD-6-6

Parker's Hi-Duty fitting is a preassembled brass fitting fitting with a sleeve machined onto the nut. This unique design creates tight joints that withstand pressures of most commomly used types of tubing.

Availability:	Backordered
Partner Available:	Backordered

SKU: 169HD-6-6

$23.19

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Nut Material	BRASS
Body Material	BRASS	Sleeve Material	BRASS
Maximum Operating Pressure	1500 psi	Maximum Operating Temperature	121 °C
Dimensional Weight	0.27594424460431655 lb	Minimum Operating Temperature	-54 °C
Tube Material	Tube Assemblies, Engine, Compressors	Application	Engine
Shape	90° Elbow	Connection 2 Tube O.D. (inch)	na
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	3/8
Style	Tube to Pipe	Connection 2 Thread Size (inch)	3/8
Connection 2 Style	Male Pipe
