Brass Ball Valve - V500P - V500P-12

Parker Brass Ball Valve - V500P Series

Availability:	76 in stock
Partner Available:	548 in stock

SKU: V500P-12

$42.23

Products specifications

Attribute name	Attribute value
Pkg Qty	10	Thread 1	3/4 PTF
UOM	EA	Flow Diameter	0.685 Inch
Material	Brass	Pkg Qty/UOM	10 EA
Free Flow CV Factor	25
Max Pressure Saturated Steam	150 PSI	Parker Group	Fluid Connector
Thread 1 Type	PTF	Material	Brass
Max Vacuum	29	Parker Division	Fluid Systems Connector (Brass Products)
Max Pressure WOG (Cold	600 PSI	Thread 1	3/4 PTF
Configuration Type	Female to Female	Material - Ball	Chrome Plated Brass
Material - Handle	Steel	Series	V500
Operating Temperature	0°F to +350°F	Flow Diameter	0.685 Inch
Valve Type	Ball Valve	Free Flow CV Factor	25
Material - Seats/Seals	PTFE

Customers who bought this item also bought

Crimp Style Hydraulic Hose Fitting - 43 Series Fittings - 10143-12-12

Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.

$13.06

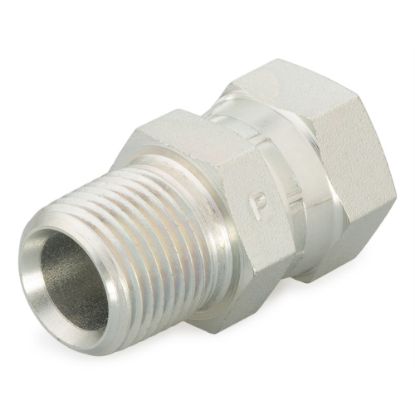

Pipe Fittings and Port Adapters - 0107-12-12
