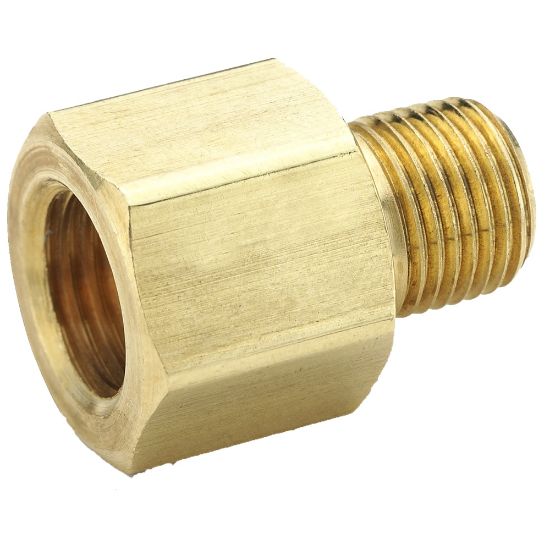

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Brass 45° Flare Fittings - 664FHD-8-6

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:	Backordered
Partner Available:	10 in stock

SKU: 664FHD-8-6

$34.23

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Specifications Met	SAE J512, SAE J513
Body Material	BRASS	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Minimum Operating Temperature	-53 °C	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Brand	Parker	Division	Fluid System Connectors Division
Maximum Operating Temperature	250 °F	O-Ring Material	Fluorocarbon
Maximum Operating Pressure	68.9 bar	Nut Material	BRASS
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	Technology	Fluid & Gas Handling
Connection 2 Tube Outside Diameter	NA	Connection 1 Thread Size	5/8-18 inch
Shape	Connector	Connection 3 Tube Outside Diameter	NA
Connection 3 Thread Size	NA	Connection 1 Type	Flare Nut
Connection 1 Tube Outside Diameter	3/8 inch	Product Style	Female Flare to Pipe
Connection 3 Type	NA	Connection 2 Thread Size	3/8 inch
Connection 2 Type	Male Pipe
