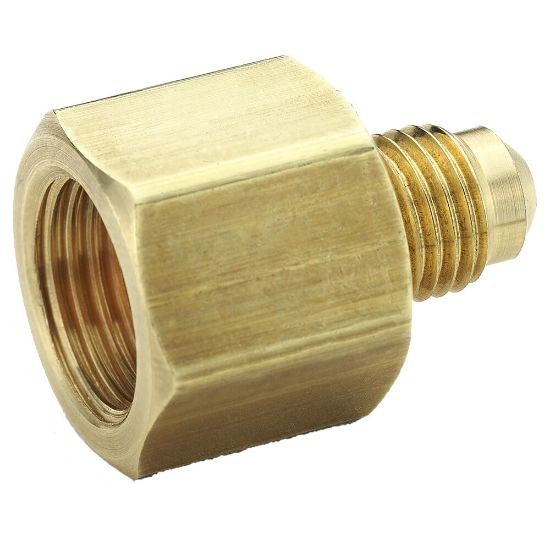

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Brass 45° Flare Fittings - 661FHD-12-10

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:	1 in stock
Partner Available:	1 in stock

SKU: 661FHD-12-10

$29.13

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Nut Material	BRASS
Body Material	BRASS	Brand	Parker
Technology	Fluid & Gas Handling	O-Ring Material	Fluorocarbon
Maximum Operating Temperature	121 °C	Minimum Operating Temperature	-53 °C
Division	Fluid System Connectors Division	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	Specifications Met	SAE J512, SAE J513
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Maximum Operating Pressure	37.9 bar
Shape	Connector	Connection 1 Type	Flare
Connection 2 Thread Size	7/8-14 inch	Connection 2 Tube Outside Diameter	5/8 inch
Connection 3 Tube Outside Diameter	NA	Connection 3 Type	NA
Connection 1 Thread Size	1-1/16-14 inch	Connection 3 Thread Size	NA
Connection 1 Tube Outside Diameter	3/4 inch	Connection 2 Type	Flare Nut
Product Style	Male Flare to Female Flare
