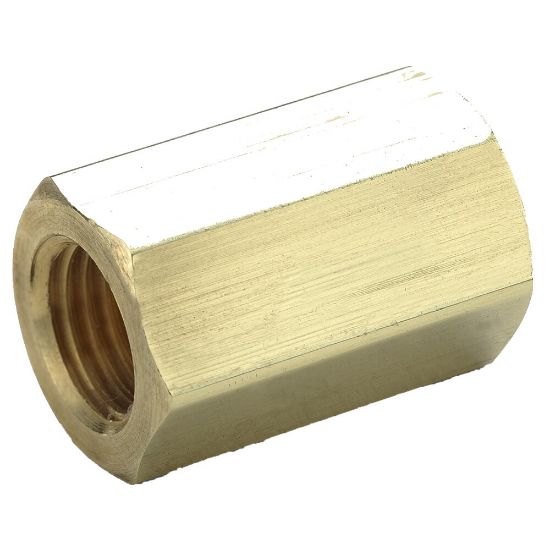

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Brass 45° Flare Fittings - 660FHD-6

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:	Backordered
Partner Available:	9 in stock

SKU: 660FHD-6

$11.29

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Nut Material	BRASS
Body Material	BRASS	Brand	Parker
Technology	Fluid & Gas Handling	Maximum Operating Temperature	250 °F
O-Ring Material	Fluorocarbon	Minimum Operating Temperature	-53 °C
Division	Fluid System Connectors Division	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Application	Pumps, Gas Grills, Coffee Makers, Adapters	Specifications Met	SAE J512, SAE J513
Maximum Operating Pressure	2800 psi	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Connection 1 Thread Size	5/8-18 inch	Connection 1 Type	Flare
Connection 2 Type	Flare	Connection 2 Thread Size	5/8-18 inch
Connection 1 Tube Outside Diameter	3/8 inch	Connection 2 Tube Outside Diameter	3/8 inch
Connection 3 Tube Outside Diameter	NA	Connection 3 Type	NA
Connection 3 Thread Size	NA	Shape	Union
Product Style	Female Flare to Female Flare
