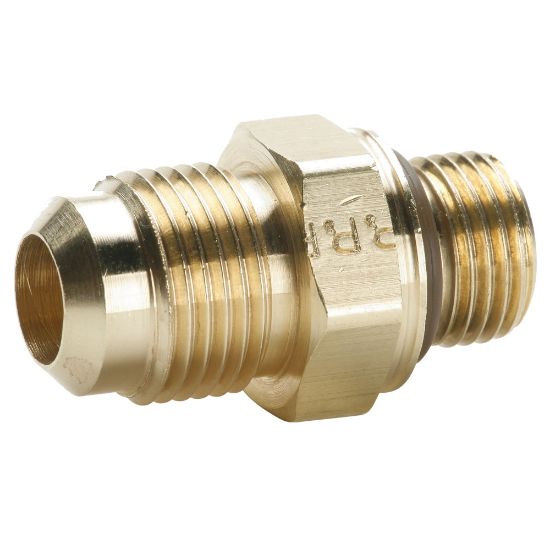

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Brass 45° Flare Fittings - 485F-12-12

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:	Backordered
Partner Available:	16 in stock

SKU: 485F-12-12

$49.37

Products specifications

Attribute name	Attribute value
Technology	Fluid & Gas Handling	Division	Fluid System Connectors Division
Maximum Operating Temperature	250 °F	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
O-Ring Material	Fluorocarbon	Brand	Parker
Nut Material	BRASS	Minimum Operating Temperature	-65 °F
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	Body Material	BRASS
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Division	Fluid System Connectors Division
Maximum Operating Pressure	550 psi	Specifications Met	SAE J512, SAE J513
Product Style	Flare to Straight Thread	Connection 2 Thread Size	1-1/16-14 inch
Connection 3 Tube Outside Diameter	NA	Shape	Connector
Connection 3 Thread Size	NA	Connection 2 Tube Outside Diameter	NA
Connection 3 Type	NA	Connection 2 Type	SAE Straight Thread
Connection 1 Type	Flare	Connection 1 Thread Size	1-1/16-12 inch
Connection 1 Tube Outside Diameter	3/4 inch
