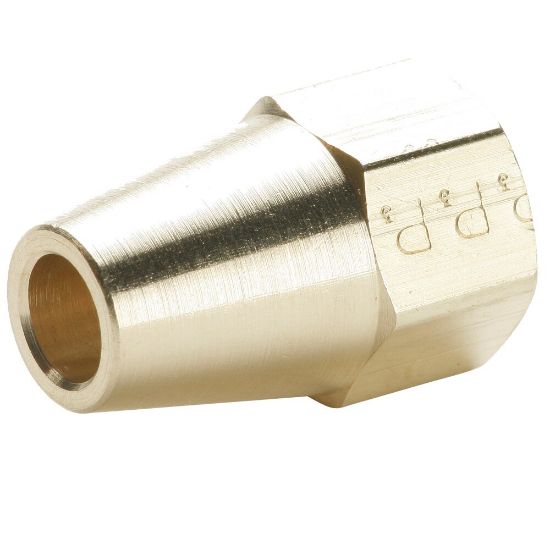

Brass 45° Flare Fittings - 41FL-3

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:	Backordered
Partner Available:	34 in stock

SKU: 41FL-3

$4.12

Products specifications

Attribute name	Attribute value
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Body Material	BRASS
Division	Fluid System Connectors Division	Maximum Operating Pressure	1,900 psi
Specifications Met	SAE J512, SAE J513	Technology	Fluid & Gas Handling
Maximum Operating Temperature	121 °C	Division	Fluid System Connectors Division
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	O-Ring Material	Fluorocarbon
Brand	Parker	Nut Material	BRASS
Minimum Operating Temperature	-65 °F	Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines
Connection 2 Type	NA	Product Style	Flare
Shape	Long Extruded Nut	Connection 1 Tube Outside Diameter	3/16 inch
Connection 3 Tube Outside Diameter	NA	Connection 3 Thread Size	NA
Connection 2 Tube Outside Diameter	NA	Connection 1 Thread Size	3/8-24 inch
Connection 2 Thread Size	NA	Connection 3 Type	NA
Connection 1 Type	Flare
