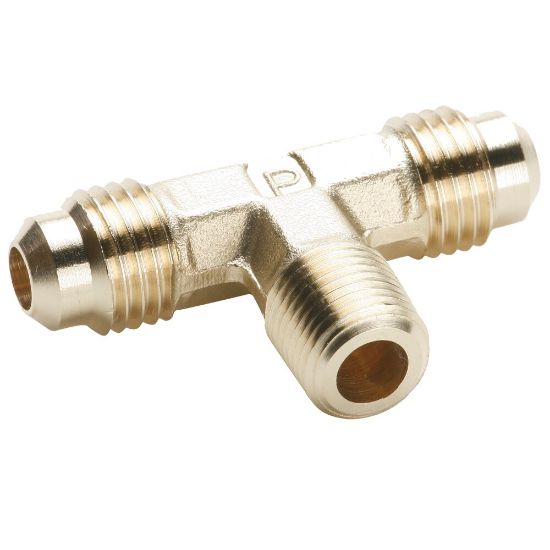

Brass 45° Flare Fittings - 145F-6-6

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:	Backordered
Partner Available:	35 in stock

SKU: 145F-6-6

$20.76

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Nut Material	BRASS
Body Material	BRASS	Brand	Parker
Technology	Fluid & Gas Handling	Maximum Operating Temperature	250 °F
O-Ring Material	Fluorocarbon	Minimum Operating Temperature	-65 °F
Division	Fluid System Connectors Division	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	Specifications Met	SAE J512, SAE J513
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Maximum Operating Pressure	1,000 psi
Shape	Branch Tee	Connection 1 Thread Size	5/8-18 inch
Connection 1 Type	Flare	Connection 2 Type	Flare
Connection 2 Thread Size	5/8-18 inch	Connection 1 Tube Outside Diameter	3/8 inch
Connection 2 Tube Outside Diameter	3/8 inch	Product Style	Flare to Pipe
Connection 3 Type	Male Pipe	Connection 3 Thread Size	3/8 inch
Connection 3 Tube Outside Diameter	NA
