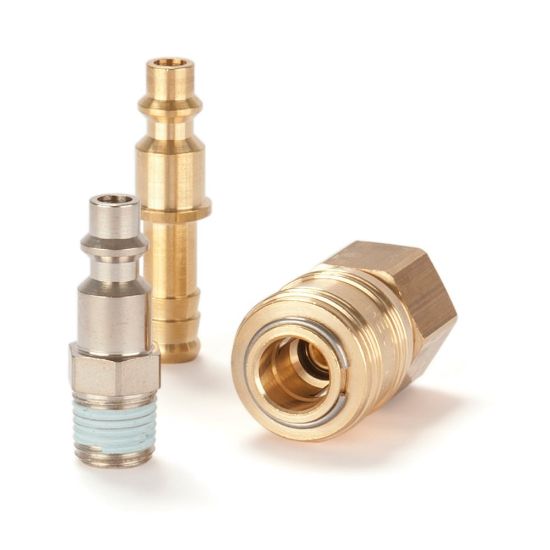

Basic Quick Coupling with ISO 6150 B Profile, Series 24 - 24KAIN13MPX

Name: Basic Quick Coupling with ISO 6150 B Profile, Series 24 - 24KAIN13MPX
SKU: 24KAIN13MPX
Availability: OutOfStock

Basic quick coupling system with nominal diameter 5.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 B profile. Available made of brass/steel.

Availability:

Backordered

SKU: 24KAIN13MPX

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	35 bar	Diameter	5,5
Valve Included	Yes	Length	43 mm
Version	Single Shut-Off	Minimum Operating Temperature	-20 °C
Flow Rate	550 L/min	Outside Diameter	25 mm
Hex Size	22 mm	Maximum Operating Temperature	100 °C
Division	Low Pressure Connectors Europe Division	Seal Material	NBR
Hose I.D.	na	Connection Type	Female NPSF
Connection Thread Size (inch)	1/4	Material	Brass
Type	Coupling
