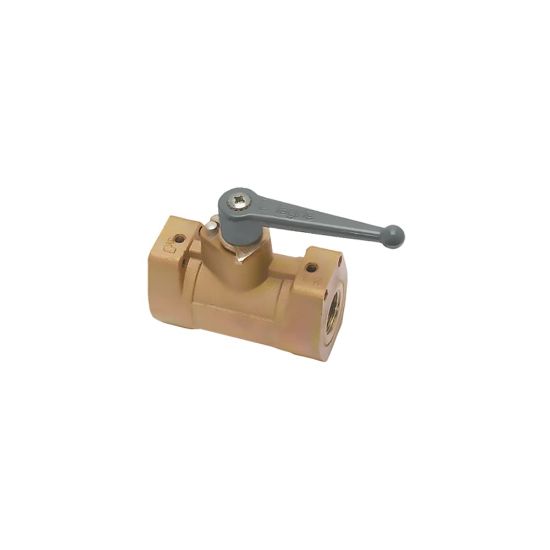

Ball Valves High Pressure Series - 4402 10 17

Name: Ball Valves High Pressure Series - 4402 10 17
SKU: 4402 10 17
Availability: OutOfStock

These valves are suitable for applications with pressures up to 300 bar.
High performance materials and quality manufacturing allow for a wide range of operating pressures and temperatures.

Availability:

Backordered

SKU: 4402 10 17

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Application	Pneumatics
Maximum Operating Temperature	80 °C	Flow Rate	n/a
Seal Material	NBR	Actuation Type	Manual
Specifications Met	REACH	Maximum Operating Pressure	300 bar
Maximum Flow Rate	n/a	Function	2-way
Mounting Type	Inline	Industry	Industrial Manufacturing Equipment
For Fluid Type	Air	Operation Type	Lever-operated
Connection Size	G3/8	Connection Type	BSPP
Brand	Legris	Technology	Pneumatics
Quantity per Box	2	Region of Origin	France
Orifice Size	10 mm	Minimum Operating Temperature	5 °F
O-Ring Material	NBR	Handle Type	Grey
Body Material	Treated Brass	Materials of Construction	Treated Brass
Weight	1.444 lb	Shape	Inline
Product Type	Ball Valves	Ball Material	Brass
Configuration	2/2	Product Style	Female Ball Valves
Seat Material	NBR	Stem Material	Stainless Steel
Product Series	High Pressure Series	Ball Seal Material	NBR
Operating Pressure	Vacuum to 300 bar	Stem Seal Material	PTFE
Connection 1 Thread Size (metric)	G3/8	Diameter Nominal (DN)	10
