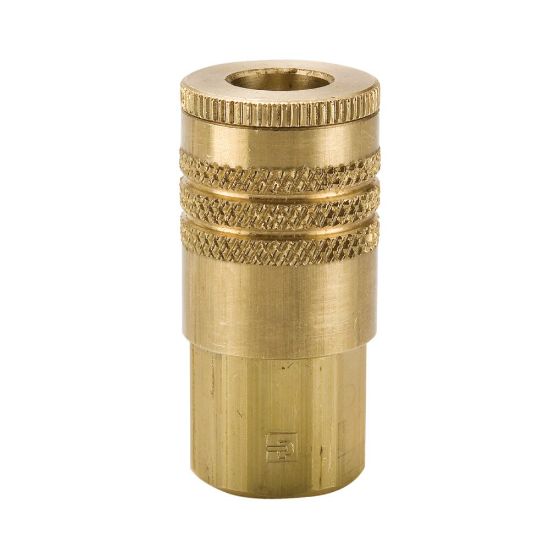

ARO 210 Interchange, Quick Connect Air Couplings - 50 Series - B53E

Parker's general purpose pneumatic, air quick connect couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	97 in stock

SKU: B53E

$26.80

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	250 °F	Product Type	Manual Connect
Minimum Operating Temperature	-40 °F	Hex Size	0.81 inch
Dimensional Weight	0.02670863309352518 lb	Division	Quick Coupling Division
Valve Type	Tubular	Body Material	BRASS
Interchange Type	Interchangeable with ARO’s 210 series	Seal Material	Nitrile
Body Size	1/4 inch	Maximum Operating Pressure	300 psi
Application	Air Compressors
Connection Thread Size (inch)	3/8 - 18	Coupling Half	Female Coupler
Connection Type	Female NPTF	Hose I.D. (inch)	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
