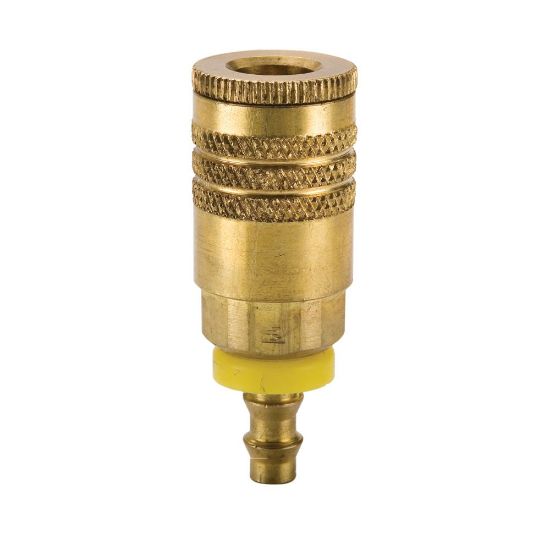

ARO 210 Interchange, Quick Connect Air Couplings - 50 Series - B50-5BP

Parker's general purpose pneumatic, air quick connect couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	27 in stock
Partner Available:	213 in stock

SKU: B50-5BP

$28.88

Products specifications

Attribute name	Attribute value
Valve Type	Tubular	Division	Quick Coupling Division
Dimensional Weight	0.026658673061550762 lb	Body Material	BRASS
Interchange Type	Interchangeable with ARO’s 210 series	Maximum Operating Pressure	300 psi
Seal Material	Nitrile	Body Size	1/4 inch
Application	Pneumatic Tools	Product Type	Manual Connect
Maximum Operating Temperature	250 °F	Hex Size	0.75 inch
Minimum Operating Temperature	-40 °F
Coupling Half	Female Coupler	Connection Thread Size (inch)	na
Connection Type	Push-Lok hose barb	Hose I.D. (inch)	3/8

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories

Literature and Reference Materials
