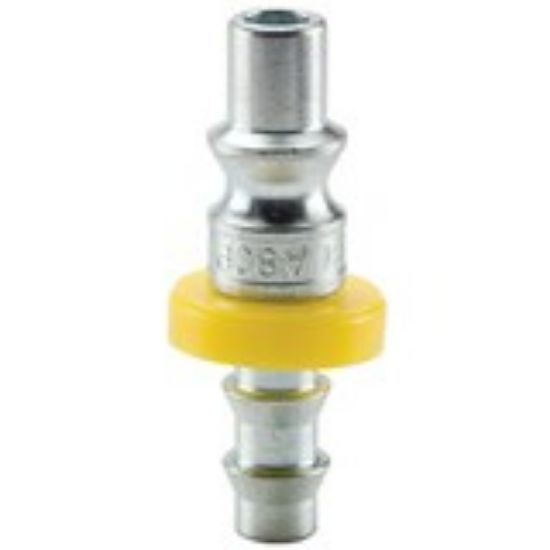

ARO 210 Interchange, Quick Connect Air Couplings - 50 Series - A8CP

Parker's general purpose pneumatic, air quick connect couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	5 in stock
Partner Available:	457 in stock

SKU: A8CP

$9.86

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Body Material	Steel
Division	Quick Coupling Division	Maximum Operating Pressure	300 psi
Maximum Operating Temperature	250 °F	Product Type	Manual Connect
Hex Size	0.62 inch	Valve Type	Unvalved
Plating Type	Zinc with clear trivalent chromate	Body Size	1/4 inch
Dimensional Weight	0.013329336530775381 lb	Interchange Type	Interchangeable with ARO’s 210 series
Application	Air Compressors
Hose I.D. (inch)	1/4	Coupling Half	Male Nipple
Connection Thread Size (inch)	na	Connection Type	Push-Lok hose barb

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
