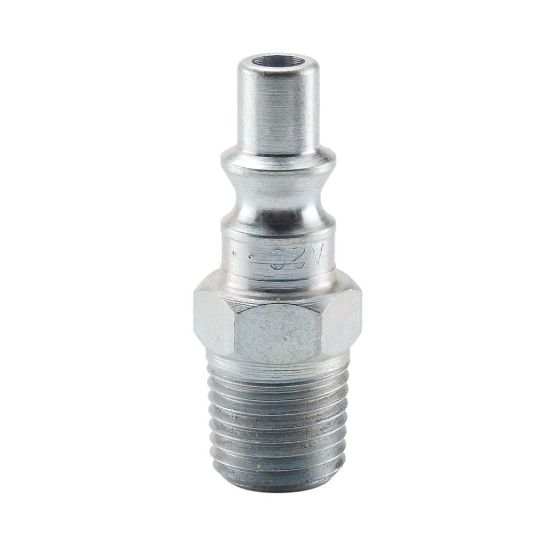

ARO 210 Interchange, Quick Connect Air Couplings - 50 Series - A2C

Parker's general purpose pneumatic, air quick connect couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	537 in stock
Partner Available:	2425 in stock

SKU: A2C

$3.92

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Body Material	Steel
Division	Quick Coupling Division	Maximum Operating Pressure	300 psi
Maximum Operating Temperature	250 °F	Product Type	Manual Connect
Valve Type	Unvalved	Plating Type	Zinc with clear trivalent chromate
Body Size	1/4 inch	Application	Pneumatic Tools
Hex Size	0.56 inch	Dimensional Weight	0.013329336530775381 lb
Interchange Type	Interchangeable with ARO’s 210 series
Coupling Half	Male Nipple	Connection Type	Male NPTF
Hose I.D. (inch)	na	Connection Thread Size (inch)	1/4 - 18

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
