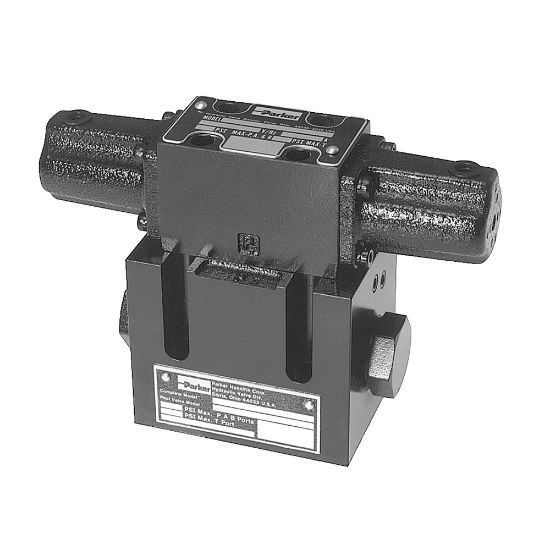

Air Operated Directional Control Valve - D31DA, D31VA Series - D31VA004C4N7

Name: Air Operated Directional Control Valve - D31DA, D31VA Series - D31VA004C4N7
SKU: D31VA004C4N7
Availability: OutOfStock

Parker’s D31*A directional control valves are 5-chamber, air pilot operated valves.

Availability:

Backordered

SKU: D31VA004C4N7

Qty:

Products specifications

Attribute name	Attribute value
Mounting Type	Subplate	Maximum Operating Temperature	140 °F
Pilot Inlet / Drain Locations	Internal Pilot / Internal Drain	Minimum Operating Temperature	-4 °F
Division	Hydraulic Valve Systems Division	Actuation Type	Hydraulic Pressure
Weight	12.7 lb	Size	CETOP 5
Maximum Operating Pressure	345 bar	Valve Type	Air Operated Directional Control Valve
Spool Position	Spring Centered	Maximum Flow Rate	40 Gal/min
Spool Code	P Port Blocked	Options	Pilot Choke Meter-out
Seal Material	Nitrile	Body Material	Gray Iron
Maximum Flow Rate	Up to 40 GPM depending on spool	Mounting Type	Subplate
Size	NFPA D05H, CETOP 5	Maximum Operating Pressure	5000 PSI
