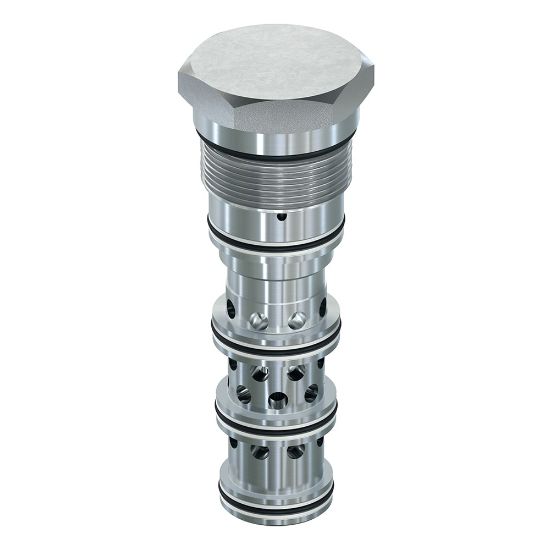

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

3 Way/2 Position Pilot Operated Directional Control Valves - N5D300-3.0N

Name: 3 Way/2 Position Pilot Operated Directional Control Valves - N5D300-3.0N
SKU: N5D300-3.0N
Availability: OutOfStock

Parker’s N5 valves are high flow / high pressure 3-way 2-position spool-type pilot-operated cartridge valves that can be used to control direction, pressure, or flow.

Availability:

Backordered

SKU: N5D300-3.0N

Qty:

Products specifications

Attribute name	Attribute value
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Operating Pressure	420 bar
Maximum Operating Temperature	+250 °F	Pilot Location	External
Standard Flow Rate Setting	53 Gal/min	Flow Direction	2,3,4 Blocked Neutral, 2-3-4 Piloted
Leak Rate	400 @ 2900 PSI (200 BAR) cm3/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operating Temperature	-30 to +250 °F	Seal Material	Nitrile
Body Material	n/a	Switching Pressure	10 bar
Minimum Operating Temperature	-34 °C	Installation Torque	160 Nm
Division	Hydraulic Systems Division	Valve Material	All parts steel. All operating parts hardened steel
Function	Diverter	Operation Type	Pilot Operated
Drain Option	External	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Configuration	Normally Closed	Cavity Size	100-1
Weight	1 kg	Actuation Type	Switching
Maximum Inlet Pressure Rating	6000 psi	Flow Rate	400 L/min
Maximum Flow Rate	105 Gal/min
Configuration	Normally Closed	Flow Direction	2,3,4 Blocked Neutral, 2-3-4 Piloted
Seal Material	Nitrile	Flow Rate	105 GAL/MIN, 400 L/MIN
Standard Flow Rate Setting	53 GAL/MIN, 200 L/MIN	Switching Pressure	44 PSI, 3 BAR
