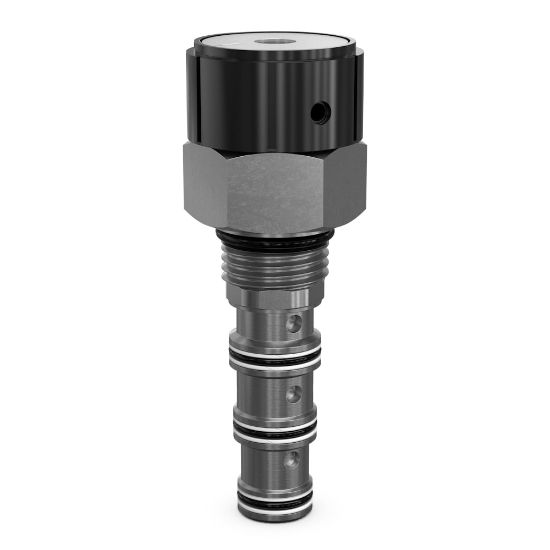

4 Way Rotary Type Manual Valve - DM104FKN8V

Name: 4 Way Rotary Type Manual Valve - DM104FKN8V
SKU: DM104FKN8V
Availability: OutOfStock

REGIONAL - Parker’s manually operated 4-way, 2 or 3-position directional control spool valve is capable of flows up to 7.5 lpm (2 gpm) and pressures as high as 240 bar (3500 psi). Knob and lever actuators are available with detents.

Availability:

Backordered

SKU: DM104FKN8V

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.11 kg	Maximum Operating Pressure	240 bar
Operation Type	Manual	Seal Material	Fluorocarbon
Body Material	n/a	Minimum Operating Temperature	-15 °F
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Installation Torque	22 Nm	Maximum Inlet Pressure Rating	3500 psi
Cavity Size	C10-4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+400 °F	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-15 to +400 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Finger Knob	Function	Spool Type
Flow Rate	7.5 L/min	Leak Rate	164 @ 3500 PSI (240 BAR) cm3/min
Actuation Type	Rotary	Maximum Flow Rate	2 Gal/min
Maximum Tank Pressure	500 psi	Detents	3 postion detent
Rotation Angle	45 °	Spool Type	Tandem Center
Seal Material	Fluorocarbon	Configuration	Finger Knob
Detents	3 position detent	Spool Type	Tandem Center
