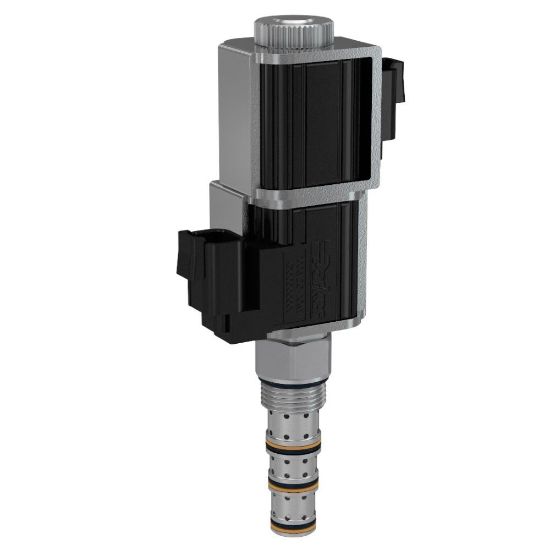

4 Way 3 Position Spool Type Solenoid Valve - GS045960ND

Name: 4 Way 3 Position Spool Type Solenoid Valve - GS045960ND
SKU: GS045960ND
Availability: OutOfStock

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Availability:

Backordered

SKU: GS045960ND

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Body Material	n/a
Maximum Operating Pressure	5000 psi	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Minimum Operating Temperature	-30 °F
Function	4-way	Maximum Inlet Pressure Rating	350 bar
Coil Nut Tightening Torque	3 lb-ft	Installation Torque	34 Nm
Flow Rate	42 L/min	Cavity Size	C10-4
Maximum Flow Rate	42 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+250 °F	Actuation Type	Electrical, Manual
Operation Type	Solenoid operated, Manually operated	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-30 to +250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Open Center	Mounting Type	Screw in cartridge valve
Input Voltage	85% of rated voltage at 72°F (20°C) min	Coil Type	5/8" Super Coil
Leak Rate	160 @ 3000 PSI (210 BAR) cm3/min	Response Time	30-60 ms
Maximum Tank Pressure	210 bar	Weight	0.58 lb
Override Functionality	Push/Pull - All Detent
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Flow Rate	11 GAL/MIN, 42 L/MIN
Actuation Type	Electrical, Manual	Configuration	Open Center
Seal Type	Nitrile
